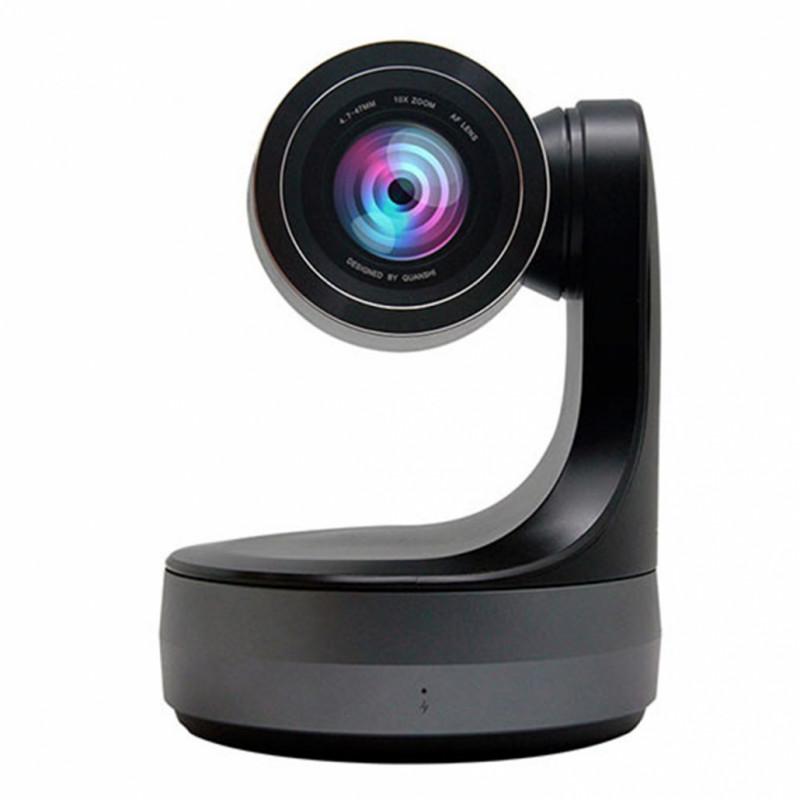

HDMI Video Conference Camera-KT-HD81Y

KT-HD81Y Camera PTZ con sensore Sony 1/2,8" Zoom 5X

KATOV
KT-HD81Y

HDMI Video Conference Camera-KT-HD81Y
-5X optical zoom optional
-Wide Angle 84.5°
-USB2.0:MJPG/H.264, Plug and play
-No need capture card
-HDMI easy connect display and many brand terminal
-Compatible with SONY VISCA and PELCO protocol
-Support USB cable to control transmit video and cloud platform

Non in magazzino
494,10 €
Tasse incluse
Quantità

NON DISPONIBILE
Aggiungi per confrontare
Aggiungi alla lista dei desideri
Image Sensor SONY 1/2.8 Progressive CMOS
Effective Pixels 3.1 Megapixels
Signal system HD HDMI: 1080P60/50, 1080P30/25, 1080i60/50, 720P60/50
U2: MJPG/H.264:320*240,640*480, 800*600,1280*720,1920*1080
Signal System PAL/NTSC
Lens  5X optical zoom f=3.2mm(w)~14.4mm(f)

F2~F2.8
Horizontal View Angle 84.5°(W)~21.6°(T)
Focus System Auto/Manual
Minimum Illumination 0.1 Lux
Exposure Control Auto/Manual
Shutter Speed 1/1～1/10,000s
Gain Auto/Manual
White Balance Auto/Manual
Image Effect Full color/black and white/Electronic flip
S/N Ratio ≥50db
Pan 355°(max. speed:80°/s)
Tilt ﹣30° to +30° (max. speed: 60°/s)
Preset Position 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller
Video Output HD HDMI, USB 2.0
Control Protocol SONY VISCA, PELCO D
Control Mode USB
Power 12V DC(10.8～13.0V DC)
Operating Temperature 0~40℃
Storage Temperature -20-60℃
Weight 945g
Color black
Accessories DC 12V power adapter, IR Remote, Operation manual, HDMI Cable, USB cable, Ceiling bracket

: KT-HD81Y
Non in magazzino

Riferimenti Specifici

ean13
0036336803527
