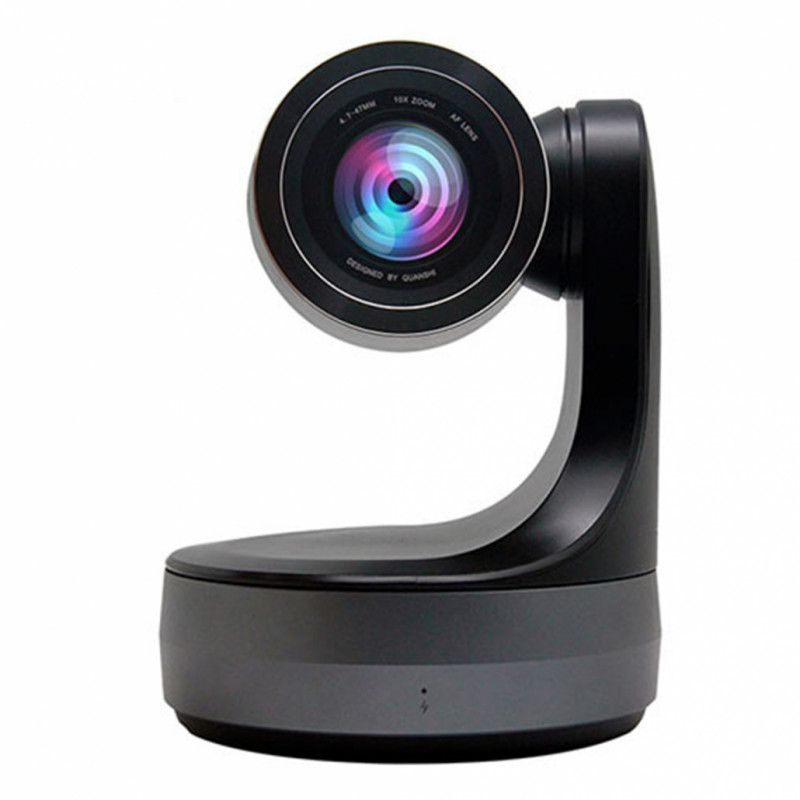

HDMI Video Conference Camera-KT-HD81Y :
1.5X optical zoom optional
2.Wide Angle 84.5°
3.USB2.0:MJPG/H.264, Plug and play
4.No need capture card, save cost
5.HDMI easy connect display and many brand terminal
6.Compatible with SONY VISCA and PELCO protocol
7.Support USB cable to control transmit video and cloud platform.
| Image Sensor | SONY 1/2.8 Progressive CMOS | |
| Effective Pixels | 3.1 Megapixels | |
| Signal system HD | HDMI: 1080P60/50, 1080P30/25, 1080i60/50, 720P60/50 | |
| U2: MJPG/H.264:320*240,640*480, 800*600,1280*720,1920*1080 | ||
| Signal System | PAL/NTSC | |
| Lens | 5X optical zoom f=3.2mm(w)~14.4mm(f)
F2~F2.8 |
12X optical zoom f=3.9mm(w)~46.8mm(f) F1.8~F2.8 |
| Horizontal View Angle | 84.5°(W)~21.6°(T) | 72.5°(W)~7.4°(T) |
| Focus System | Auto/Manual | |
| Minimum Illumination | 0.1 Lux | |
| Exposure Control | Auto/Manual | |
| Shutter Speed | 1/1～1/10,000s | |
| Gain | Auto/Manual | |
| White Balance | Auto/Manual | |
| Image Effect | Full color/black and white/Electronic flip | |
| S/N Ratio | ≥50db | |
| Pan | 355°(max. speed:80°/s) | |
| Tilt | ﹣30° to +30° (max. speed: 60°/s) | |
| Preset Position | 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller | |
| Video Output HD | HDMI, USB 2.0 | |
| Control Protocol | SONY VISCA, PELCO D | |
| Control Mode | USB | |
| Power | 12V DC(10.8～13.0V DC) | |
| Operating Temperature | 0~40℃ | |
| Storage Temperature | -20-60℃ | |
| Weight | 945g | |
| Color | black | |
| Accessories | DC 12V power adapter, IR Remote, Operation manual, HDMI Cable, USB cable, Ceiling bracket | |
