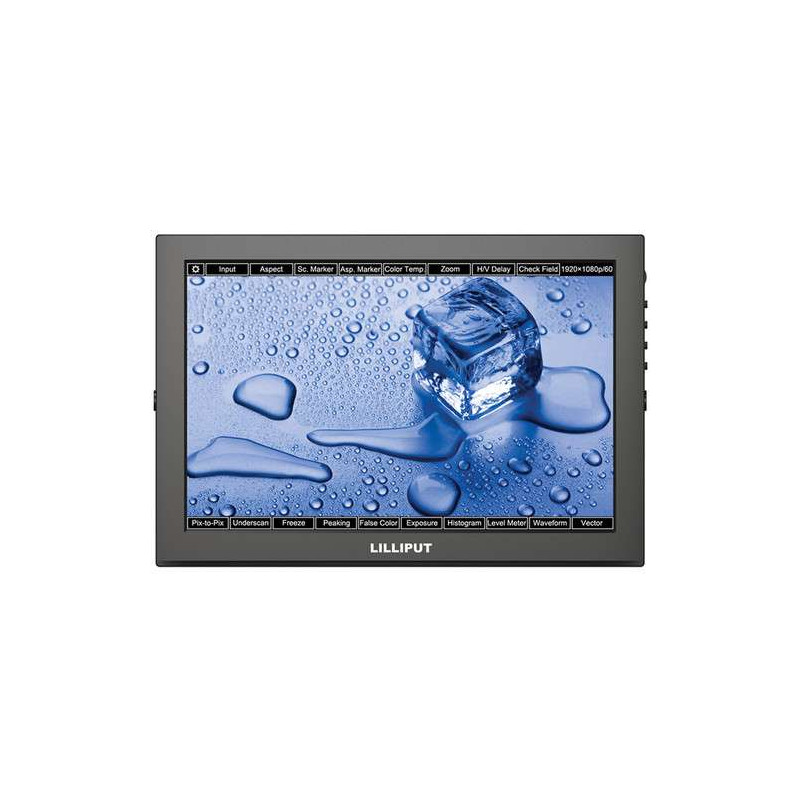

TM-1018/O/P Lilliput LCD Monitor 10,1" 1280x800
The Lilliput TM-1018/O/P 10-inch LED backlit monitor is a field monitor with HDMI input and output, designed for use with DSLRs and standard high-definition cameras. With a high-quality panel, the monitor features a capacitive touch screen function to access and use the internal setting functions. The monitor also features a 3G-SDI connection for professional broadcasting. Level meter, histogram, waveform and vector scope can be displayed horizontally at the same time, while professional waveform metering and color control help the user realize and record natural color. Composite and component via BNC connectors and HDMI inputs cover all the bases for common broadcasting applications. An HDMI output is also included, avoiding the need for HDMI splitters.
| Pannello |
LED IP da 10,1 "(25,6 cm) |
| Risoluzione |
1280 x 800, supporta fino a 1920 x 1080 |
| Proporzioni |
16: 9 |
| Luminosità |
350cd / m 2 |
| Contrasto |
800: 1 |
| Angolo di visione |
170 ° / 170 ° (H / V) |
| Controluce |
GUIDATO |
| video |
1 x HDMI, 1 x VGA, 1 x composito (RCA) |
| video |
1 x HDMI, 1 x composito (RCA) |
| Audio |
Uscita jack da 3,5 mm, 1 x altoparlante incorporato (<1 W) |
| attuale |
1200 mA |
| Tensione di ingresso |
Da 7 a 24 VDC |
| temperatura di esercizio |
Da 32 a 122 ° F (da 0 a 50 ° C) |
| Temperatura di conservazione |
Da -40 a 140 ° F (da -20 a 60 ° C) |
| Dimensioni (L x L x P) |
9,8 x 6,7 x 1,1 "(25,0 x 17,0 x 2,9 cm) |
| Peso |
22,2 once (630 g) |
In the box:
LILLIPUT TM-1018/O/P 10.1" Touchscreen LED Backlit Camera Monitor
Suitcase
Mount Plate
Battery Plate
12 VDC Adapter
Mini XLR
Composite Cable
HDMI AC Cable
Shoe Mount
Gimbal Bracket
VESA Battery Bracket
Folding Sunshade
Limited 1-Year Warranty
