AVMATRIX
PVS0403U

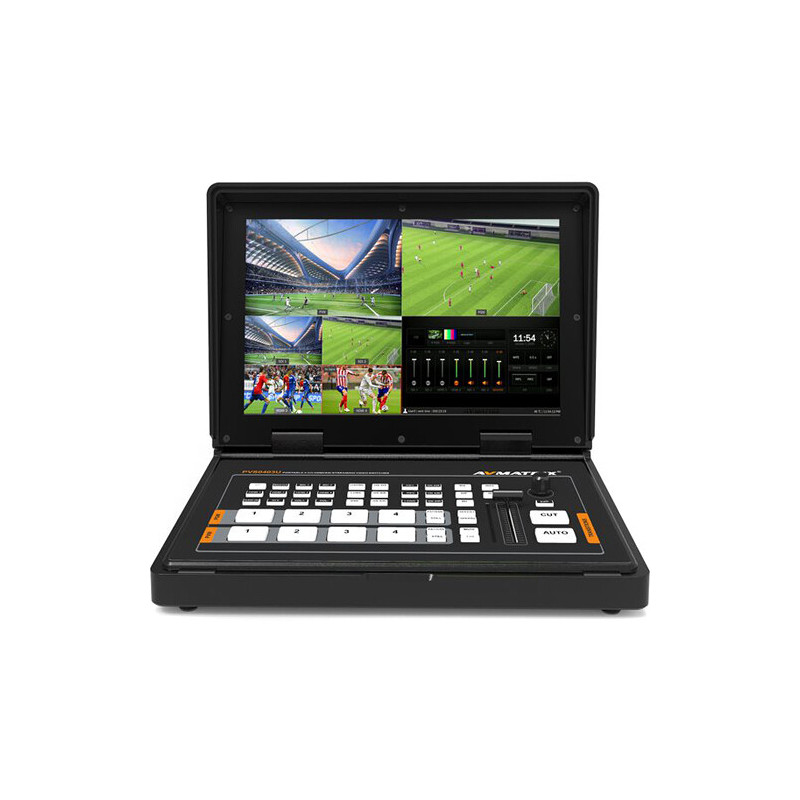

Add professional video switching and audio mixing flexibility to your concert productions, house of worship, educational forum, or live sports programming with this HVS0403U Micro 4-Channel SDI & HDMI Video Switcher from AVMATRIX. Boasting two HDMI and two SDI autodetectable inputs, the HVS0403U is a compact and user-friendly video switcher loaded with an integrated 10.1" Full HD IPS LCD monitor and many powerful features, including luma and chroma keying, mix/fade/wipe effects, audio mixing, and a picture-in-picture (PiP) or picture-on-picture (PoP) layout, using tactile functions such as auto and cut transitions or the T-bar.

Out of Stock
€1,045.59
Tax included
Quantity

Add to Compare
Add to Wishlist

Key Specs

Available M/E Layers 2 M/E
Effect Types 1x Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Graphics Memory 32 Images/td>
Downstream Keys 1x Chroma, Luma, DVE
Generators 2x Color - 1x Pattern
Audio Mixing 2-Channel Mixing


Processing

Switching Type Pushbutton, Software, T-Bar
Processing Resolution 1080p
Color Processing YUV - RGB


Input

Number of Video Input Sources 4
Video Inputs 2x HDMI Female - 2x BNC (3G-SDI) Female
Input Video Format HDMI
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 24/25/29.97/30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
480p 59.94/60 fps
480i / 525 lines 59.94/60 fps
Audio Inputs 32x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI: 2-Channel (per Input) - SDI: 2-Channel (per Input)


Output

Video Output Channels 2
Video Outputs 12x
2x HDMI Female (Program)
1x HDMI Female (Preview)
1x USB-C (USB Video) Female		 10x
Output Video Format
HDMI 1080p at 23.98/24/25/30/50/60 fps - 1080i 50/60 fps
USB-C 1080p at 60 fps
Embedded Audio Output HDMI: 2-Channel (per Output)
USB-C: 2-Channel (per Output)
Multiview Output 4-Way Multiview via HDMI
Monitor Output 1x HDM


Display

Display Size 10.1"
Screen Resolution 1920 x 1080
Processor Not Specified by Manufacturer
Wi-Fi No
Bluetooth No
Power I/O 1x Barrel (7 to 24 VDC) Input
Power Consumption 12 VDC at 1.8 A (12 W)


Environmental

Operating Temperature -4 to 140°F / -20 to 60°C
Storage Temperature -22 to 158°F / -30 to 70°C


General

Dimensions (W x H x D) 10.3 x 7.6 x 2.3" / 26.1 x 19.3 x 5.8 cm
Weight 3.5 lb / 1.6 kg


Packaging Info

Package Weight 4.875 lb
Box Dimensions (LxWxH) 12.2 x 11.45 x 4.35"
