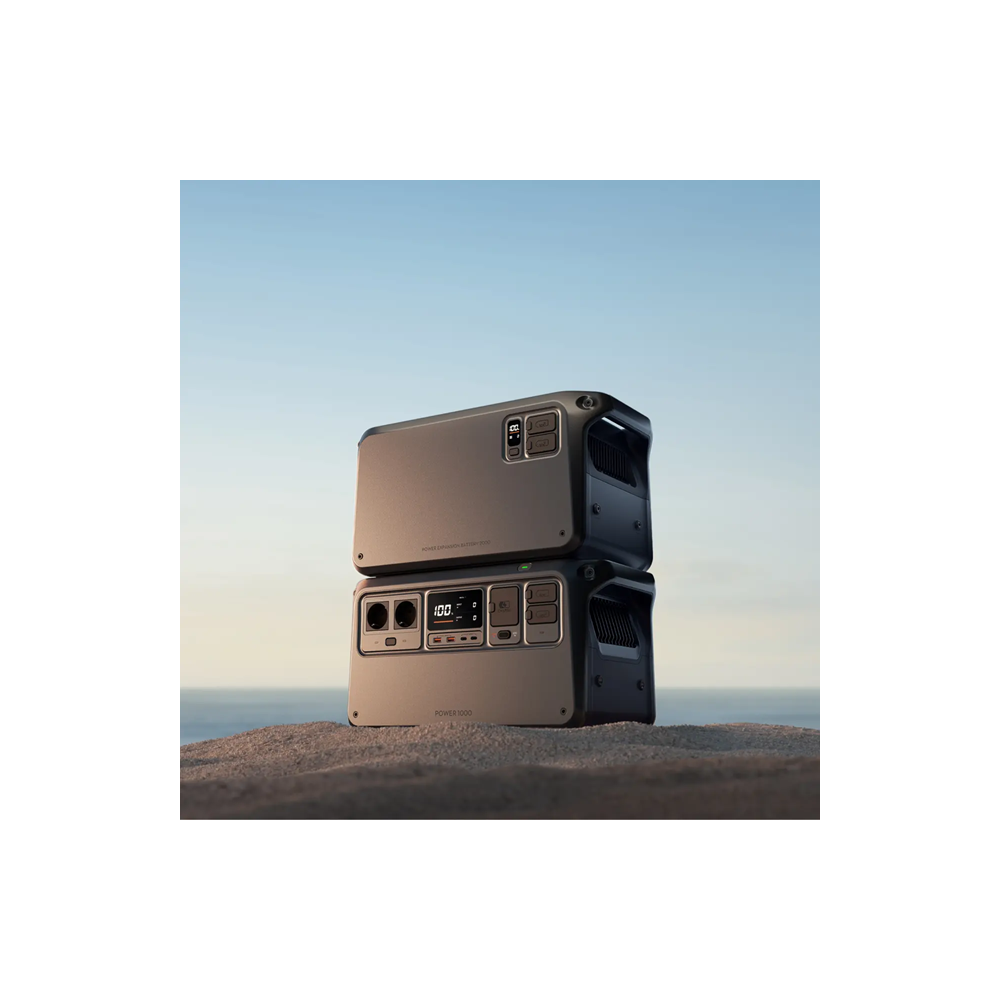

DJI Power Expansion Battery 2000

Full Description

The DJI Power Expansion Battery 2000 is an advanced modular add-on designed for the DJI Power 1000 station, enabling seamless energy expansion from 3,072 Wh up to 11,264 Wh by stacking up to five units. Featuring a compact design (448.5 × 225 × 234 mm) and single-sided port layout, it ensures easy installation and transport. Ideal for professionals working outdoors—filmmakers, drone operators, photographers—as well as campers, families, and small businesses needing reliable power on the go. This battery module delivers robust performance with up to 2,400 W continuous output, even in the most demanding environments.

Main Features

• Modular expandability: stack up to 5 units with Power 1000, for a total capacity of up to 11,264 Wh
• High output: 2,400 W continuous (2,600 W peak for 15–60 seconds)
• Fast charging: approx. 1,024 Wh in just 36–46 minutes (max 1,950 W input)
• Long battery life: >4,000 cycles with over 80% original capacity
• Advanced safety: LFP cells with BMS and nano‑coating protection from dust and moisture
• DJI ecosystem support: dual SDC ports for drone charging and management via DJI Home App + Power Dongle

Technical Specifications

• Rated capacity: 2,048 Wh (40 Ah)
• Battery type: LFP (LiFePO₄)
• Certified life cycle: ≥ 4,000 cycles with ≥ 80% remaining capacity
• Ports: 2 × SDC (daisy-chain and drone charging)
• Input: 58.4 V / max 60 A (up to 1,950 W)
• Output: 40–58.4 V / max 60 A (2,400 W continuous, 2,600 W peak)
• Dimensions: 448.5 × 225 × 234 mm
• Weight: ≈ 16.5 kg
• Operating temperatures:
  • Power delivery: –10 °C to 45 °C
  • Charging: 0 °C to 45 °C
  • Storage: –20 °C to 50 °C
• Design: ¼″ mounting holes, single-sided ports, compact and stackable build

Package Includes

• 1 × DJI Power Expansion Battery 2000
• 1 × SDC-to-SDC cable (for connection to Power 1000 or additional modules)

FAQ

Can I use it as a standalone unit?

No, it must be paired with the DJI Power 1000 station to function.

How many expansion batteries can I connect?

Up to 5 units can be stacked for a total capacity of 11,264 Wh.

Is it compatible with DJI drones?

Yes, the SDC ports support fast charging for Mavic, Air, Inspire, and Matrice series drones.

How long does it take to recharge?

With up to 1,950 W input, it recharges around 1,024 Wh in 36–46 minutes.

Is it protected against dust and water?

Yes, it features nano‑coating and a smart BMS for dust resistance, light rain, and salty fog protection.
