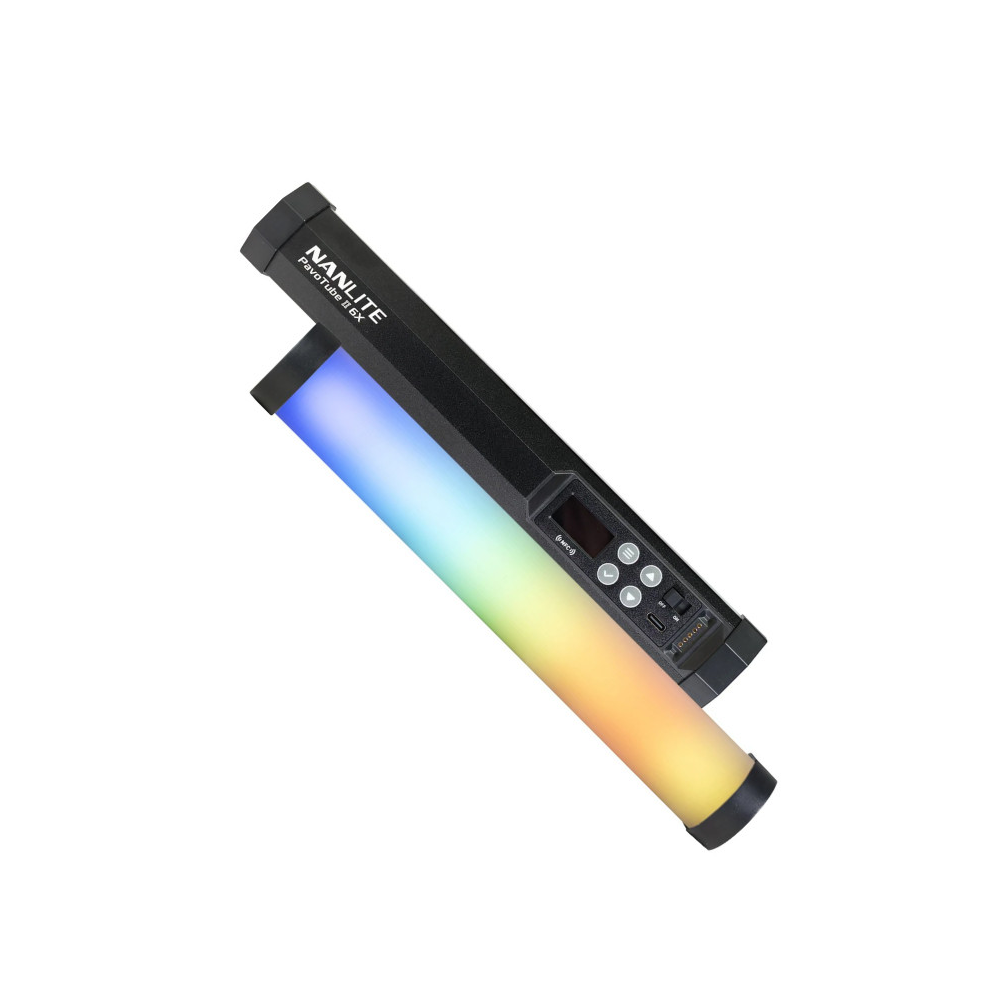

Nanlite PavoTube II 6XR – Compact RGBWW LED Tube for Professional Use

FULL DESCRIPTION

The Nanlite PavoTube II 6XR is the upgraded version of the popular PavoTube II 6C, featuring significant improvements tailored to photographers, filmmakers, and professional content creators. Measuring just 25 cm in length and weighing 270 g, this compact tube light delivers high-quality, even illumination with CRI 96, TLCI 97, TM‑30 Rf 93 and Rg 100. Its integrated 3,200 mAh battery supports PD3.0 fast charging, providing flexibility for on-location or studio shoots.

Equipped with 8 individually addressable pixels and versatile control options—CRMX LumenRadio, Bluetooth, USB‑C DMX/RDM, and NFC—the PavoTube II 6XR is ideal for dynamic effects, ambient lighting, or tight shooting spaces where creative lighting is essential.

KEY FEATURES

• Advanced control: CRMX LumenRadio, DMX/RDM via USB‑C, Bluetooth via NANLINK app, NFC quick pairing.
• Creative lighting effects: 8 independent pixel zones, 10 customizable pixel effects, 15 built-in special effects (e.g., police, fire, TV flicker).
• Color & temperature range: 36,000 RGB colors, CCT from 2700 K to 12,000 K with G/M ±150 adjustment, 230 LEE/ROSCO gel presets.
• Soft, uniform output: integrated diffuser eliminates hotspots, perfect for beauty lighting and on-set use.
• Portable power: built-in battery supports USB‑C PD3.0 charging or continuous power via AC, power bank, or NP-F550 battery grip.
• Versatile mounting: integrated magnets, iron plates, T12 clips, and 1/4″‑20 threads at both ends.

TECHNICAL SPECIFICATIONS

• Size & Weight: 25 cm (9.8″), 270 g (9.5 oz).
• Output: 1,556 lux at 0.3 m (5600 K), ~139 lux at 1 m.
• CCT Range: 2700 K – 12000 K, G/M ±150 adjustment.
• RGB: 36,000 color combinations, 230 gel presets.
• Effects: 8 pixel zones, 10 pixel effects, 15 special lighting effects.
• Color Accuracy: CRI avg. 96, TLCI avg. 97, TM‑30 Rf avg. 93, Rg avg. 100.
• Control: Onboard, NANLINK app (Bluetooth), DMX/RDM, CRMX LumenRadio, NFC pairing.
• Battery: Li-ion 3,200 mAh (~6 W).
• Power Supply: USB‑C PD3.0 ≥20 W, AC, power bank, NP-F550 battery grip.
• Mounting: T12 clips, magnetic mounting, iron plates, dual 1/4″‑20 threads.
• Operating Temperature: –20 °C to +45 °C (–4 °F to 113 °F).
• Warranty: 2 years + 1 additional year upon registration.

PACKAGE CONTENTS

• 1 × Nanlite PavoTube II 6XR
• 3 × Iron plates
• 1 × USB-C cable
• 1 × Carrying pouch
• User manual
• 2-year warranty (+1 with registration)

FAQ

How do I charge the PavoTube II 6XR?

You can charge it via USB-C using a PD3.0 charger (minimum 20 W), AC power, or a power bank. It also supports operation while charging.

Is it compatible with PavoTube II 6C accessories?

Yes, it is fully compatible with all existing PavoTube II 6C accessories such as grids, clips, waterproof bags, and diffusers.

How long does the battery last?

The 3,200 mAh battery provides several hours of continuous use, depending on brightness level and effect usage.

Can it be used in professional productions?

Absolutely. It supports DMX/RDM via USB-C and CRMX wireless, making it ideal for professional film sets, events, or museum installations.
