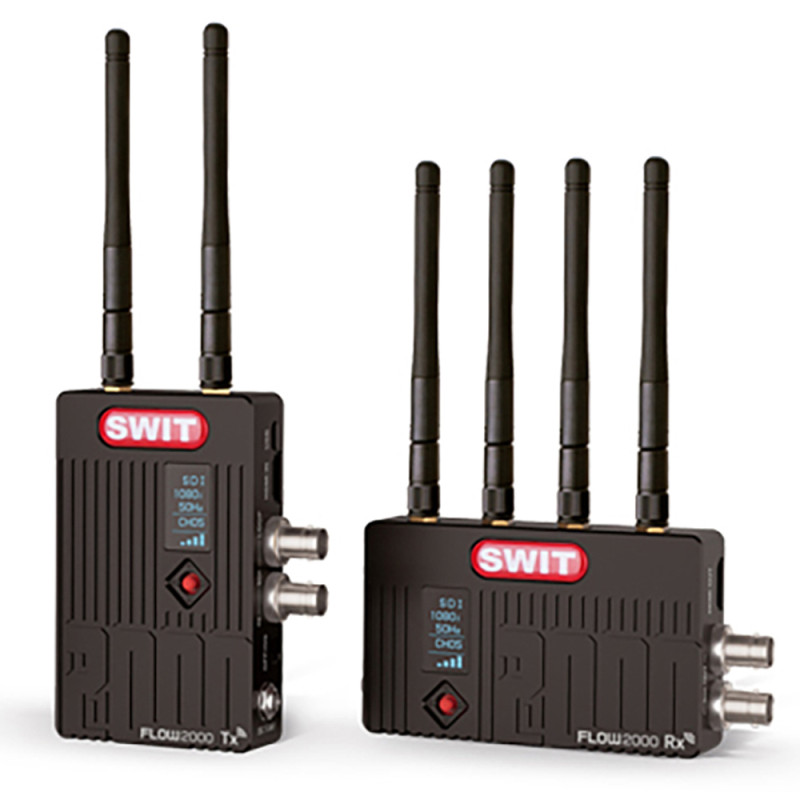

The FLOW2000 SWIT wireless system is based on SWIT's KUWI wireless technology, operating in license-free 5.1-5.9GHz bands and compliant with DFS. It supports 3G/HD-SDI and HDMI (up to 1080p60) for video transmission up to 600 meters in Line-of-Sight mode. The system is pure hardware connectivity, plug and play, widely used in applications such as director monitoring, drones, cable cameras, and steadicam.

Key Features

• Reliable Transmission: FLOW2000 SWIT supports reliable wireless transmission up to 600 meters (2000 feet) in Line-of-Sight mode.

• Support for 3G/HD-SDI and HDMI: The system supports 3G/HD-SDI and HDMI (up to 1080p60), ensuring excellent video quality.

• Double Encryption: The wireless transmission protocol and content are doubly encrypted to protect data.

• OLED Display: Both the transmitter (Tx) and receiver (Rx) are equipped with OLED displays to show signal format, wireless channel number, and signal strength.

• Multicast: Supports up to 22 pairs of transmitter and receiver in one location.

• Compatibility with Complex Environments: The system can maintain a stable connection even in complex environments such as stadiums, concerts, and public squares.

Technical Specifications

• Input & Output:

  • Transmitter (Tx): 2 omnidirectional antennas, supports 1 x 3G/HD-SDI input, 1 x 3G/HD-SDI loop output, 1 x HDMI 1.3 input.

  • Receiver (Rx): 4 omnidirectional antennas, supports 2 x 3G/HD-SDI outputs, 1 x HDMI 1.3 output.

• SDI & HDMI Formats: 1080p60, 1080p59.94, 1080p50, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080psf23.98, 1080psf24, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50.

• Transmission: Supports 2-channel SDI & HDMI embedded audio transmission.

• OLED Display & Channel Switch: Operates at 5.1-5.9GHz, with an integrated wireless scanner that detects wireless conditions and automatically switches to the best channel to maintain a reliable connection.

• Multicast and Double Encryption: Supports one transmitter for an unlimited number of receivers, with AES128 encryption to protect data.

• Stable Connection in Complex Environments: Utilizes professional KUWI 5GHz wireless technology to maintain a stable connection even in complex environments.

• Reclock & Color Reproduction: Supports reclock and accurate color reproduction to ensure quality of black level, signal noise, and color reproduction.

What's in the Box

• 1 Transmitter (Tx)

• 1 Receiver (Rx)

• 2 Omnidirectional antennas for the transmitter

• 4 Omnidirectional antennas for the receiver

• Connection cables

• User manual
