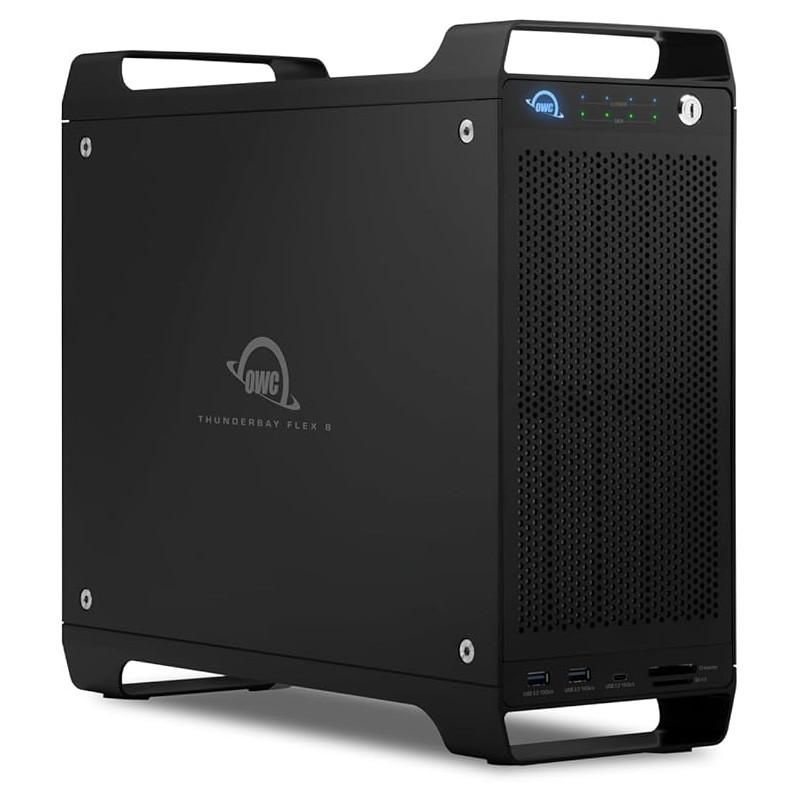

The OWC ThunderBay Flex 8 is a state-of-the-art storage solution that integrates eight drive bays, docking functionality, and a PCIe expansion slot into a single device. Designed for creative professionals, it offers up to 96TB of storage capacity, supporting a combination of SATA/SAS drives and NVMe U.2/M.2 SSDs. Its versatile connectivity includes two Thunderbolt 3 ports, one USB-C port, and two USB-A ports, allowing for seamless data transfer and device charging. Additionally, it features a DisplayPort 1.4 output for displays up to 8K and front-facing SD 4.0 and CFexpress card readers for fast data imports. The PCIe slot allows for further customization, supporting additional cards to meet specific project requirements. This integrated solution is perfect for professionals seeking speed, capacity, and versatility in one device.

MAIN FEATURES

• Flexible Storage Capacity: Supports up to 96TB of data with eight bays that can house a combination of 2.5”/3.5” SATA/SAS drives and NVMe U.2/M.2 SSDs, providing a scalable and high-performance storage solution.

• Versatile Connectivity: Equipped with two Thunderbolt 3 ports, one USB-C port, and two USB-A ports, it allows for simultaneous device connection, data transfer, and charging.

• Advanced Video Support: The integrated DisplayPort 1.4 output enables connection to monitors with up to 8K resolution, ideal for high-definition workflows.

• Integrated Card Readers: Front-facing SD 4.0 and CFexpress card readers ensure quick import of high-resolution images and videos, optimizing creative workflows.

• PCIe Expansion: The PCIe x16 slot supports the installation of additional cards, such as audio or networking cards, to enhance system capabilities and tailor it to specific project needs.

TECHNICAL SPECIFICATIONS

• Drive Bays:

  • 8 total bays
  • Supports 2.5"/3.5" SATA/SAS drives
  • NVMe U.2/M.2 SSD support in the first 4 bays

• Maximum Capacity: Up to 96TB

• Connectivity Ports:

  • 2 x Thunderbolt 3 (40Gb/s)
  • 1 x USB-C (10Gb/s)
  • 2 x USB-A (10Gb/s)
  • 1 x DisplayPort 1.4

• Card Readers:

  • 1 x SD 4.0
  • 1 x CFexpress

• Expansion Slot: 1 x PCIe x16 (supports half-length, full-height, double-width cards)

• Data Transfer Speed: Up to 2750MB/s

• Power Supply: Integrated power supply with included power cable

• Compatibility:

  • Mac with Thunderbolt 3
  • Windows PC with Thunderbolt 3

• Dimensions: 250 mm (L) x 180 mm (W) x 330 mm (H)

• Weight: 7.5 kg (without drives)

PACKAGE CONTENTS

• OWC ThunderBay Flex 8
• Thunderbolt 3 cable
• Power cable
• Quick start guide
