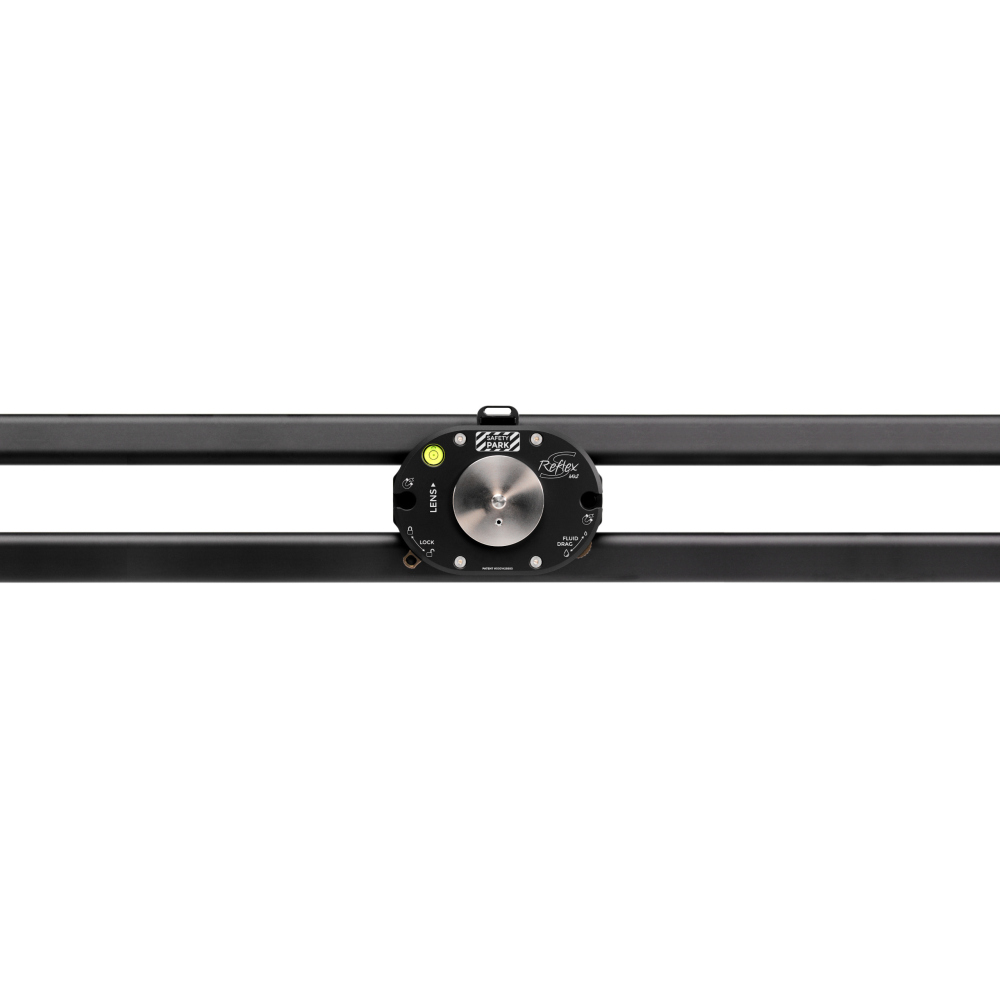

SmartSLIDER Reflex 410 – SmartSystem

FULL DESCRIPTION

The SmartSLIDER Reflex 410 – SmartSystem is an ultra-lightweight professional slider, weighing just 1.8 kg, designed for videographers needing compact yet high-performance gear. Equipped with a patented Fluid Drag system, it delivers exceptionally smooth and controlled linear motion, eliminating vibrations at start and stop. Perfect for tight spaces and mobile shooting, it provides stability on delicate surfaces via 4 rubber feet, and compatibility with standard video heads and tripods (1/4″, 3/8″, 5/8″ threads). The carriage can be locked and fine-tuned using brake and drag controls. Supporting up to 14 kg payload, it is ideal for DSLRs, mirrorless cameras, fluid heads, and light setups.

KEY FEATURES

• Patented Fluid Drag: a unique system acting directly on roller bearings for ultra-smooth, consistent motion.
• Extreme lightness: aerospace-grade CNC machined aluminum; only 1.8 kg for the 410 mm version.
• High payload: supports up to 14 kg despite its lightweight design.
• Versatile mounting: 1/4″ and 3/8″ threaded plates centrally and laterally, plus two 5/8″ holes for stands—mount on tripods or flat surfaces.
• Surface adaptability: 4 anti-slip flat rubber feet.
• Expandable setup: optional accessories include DigiMOTOR for motorization and timelapse, outrigger feet for uneven surfaces.

TECHNICAL SPECIFICATIONS

• Material: CNC machined aluminum 6082, hard-anodized
• Weight: approx. 1.8 kg
• Slider travel: 410 mm
• Max payload: 14 kg
• Sliding system: patented Fluid Drag on the carriage
• Controls: Brake and adjustable Drag (sliding-type)
• Mounting threads: 1/4″, 3/8″ (center/lateral), 5/8″ (sides)
• Feet: 4 flat anti-slip rubber pads
• Approx. length: ~60 cm
• Optional accessories: DigiMOTOR Reflex kit, outrigger feet, protective case
• Warranty: 24 months
• Secondary materials: steels C40, FE360B, AISI 304; Delrin/Nylon; RoHS compliant

WHAT’S IN THE BOX

• SmartSLIDER Reflex 410 – SmartSystem
• 4 flat anti-slip rubber feet
• User manual and 24-month warranty
• Screws and knobs for mounting and locking

FAQ

How do I mount it on a tripod or stand?

Use the 1/4″ and 3/8″ threaded plates (center/lateral) or the side 5/8″ holes for light stands. Be sure to tighten all knobs and screws securely.

Can I use it on delicate or inclined surfaces?

Yes, thanks to the four flat rubber feet that protect surfaces and provide grip even on inclined planes.

How do I adjust the carriage smoothness?

Rotate the “Drag” knob to increase or decrease fluid friction. The “Brake” locks the carriage in place when needed.

Is it motorizable?

Yes, with the optional DigiMOTOR Reflex kit (compatible with Reflex models). It enables highly precise timelapse and vertical movements.
