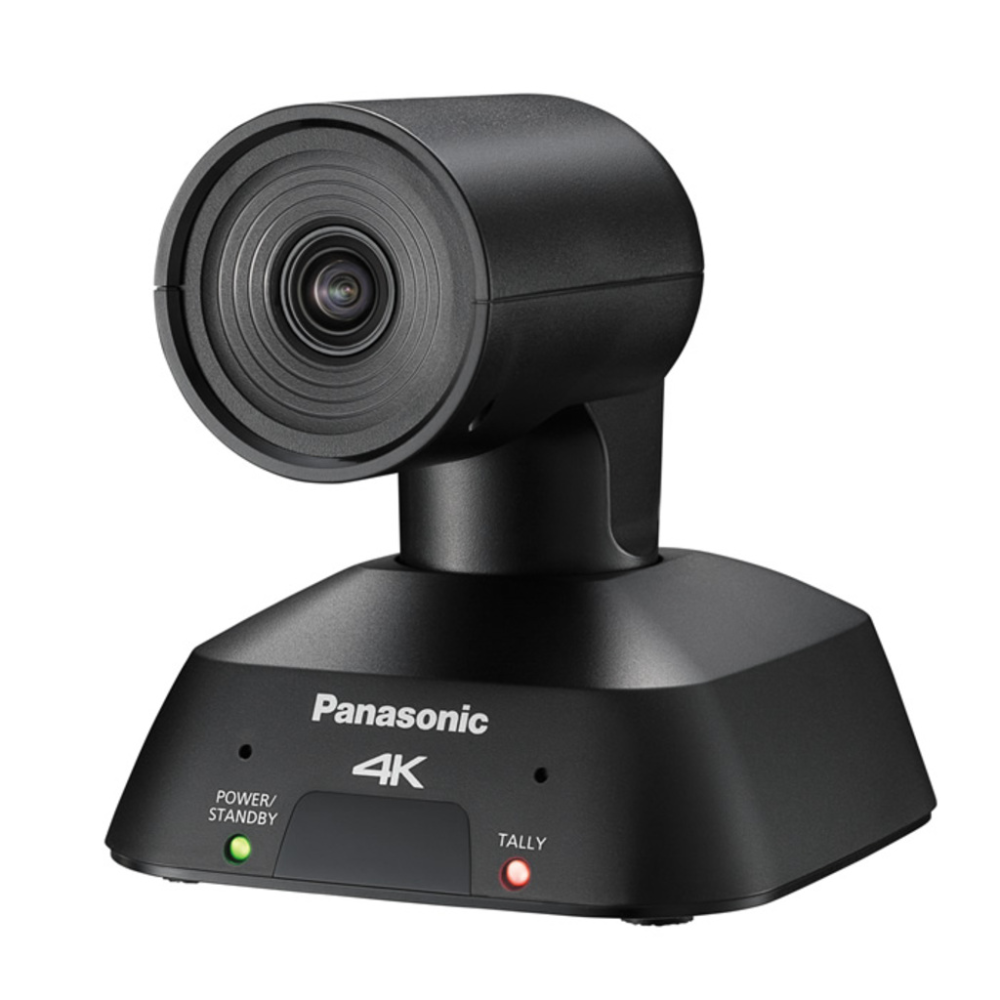

Panasonic AW-UE4KG

Complete Description

The Panasonic AW-UE4KG is an ultra-compact 4K PTZ camera designed to capture wide-angle images (111° FOV) even in confined spaces. As the compact successor to the professional AW‑HE2 model, it targets system integrators, educational institutions, corporate AV setups, broadcasters, and live streamers. Ideal for video conferencing, e-learning, and live events, the UE4WG features HDMI, LAN/IP, and USB outputs, along with RTMP/RTMPS streaming and power via PoE or USB. It offers flexible installation on desks, walls, ceilings, or tripods and can be easily controlled via web browser, IR remote (AW‑RM50G), hardware controllers (AW‑RP60GJ), or third-party systems like SKAARHOJ or ClickShare.

Main Features

• Ultra-wide 111° FOV: Capture the entire room, perfect for tight setups.
• 4K/30p Output: HDMI, IP, and USB streaming up to 3840×2160 @ 30 fps.
• 4x Digital Zoom + ePTZ: Smooth digital pan/tilt and zoom using the high-resolution 4K sensor.
• Power over Ethernet (PoE): Single cable for video, power, and control – or use USB power.
• RTMP/RTMPS Streaming: Direct streaming to YouTube Live, Facebook Live, and other platforms.
• Zoom Certified: Optimized as a professional USB webcam for Zoom, Teams, Meet, etc.
• Built-in Stereo Microphone: With auto-level control (ALC) and mute function.
• Flexible Control Options: Manage via web browser, AW‑RM50G remote, AW‑RP60GJ controller, SKAARHOJ, or ClickShare.
• Versatile Mounting: Desktop, ceiling, wall, or tripod – light weight (~0.5 kg).

Technical Specifications

• Sensor: 1/2.5″ MOS
• Lens: F2.4, f=2.21 mm (equivalent to ~13.4 mm)
• Field of View: Horizontal 111° (LDC off), 108° (LDC on); Vertical 75°; Diagonal 120°/116°
• Digital Zoom: Up to 4x; ePTZ pan ±220°, tilt ±50°
• Resolutions: HDMI 4K: 2160/30p; HD: 1080/60p, 720/60p
• USB (UVC/MJPEG): 4K30, 1080p60, 48 kHz PCM audio output
• IP Streaming: H.264/H.265/MJPEG, supports RTMP/RTMPS
• Power Supply: USB 5 V ±5% (1 A) or PoE 37–57 V (0.2 A)
• Operating Environment: 0–40 °C; Humidity 20–90% (non-condensing)
• Size & Weight: 123 × 131 × 139 mm (excluding bracket), ~0.5 kg
• Audio: Integrated stereo mic with mute and ALC; USB Audio Class 1.0 output
• Interfaces: RJ‑45 LAN, USB‑C, HDMI; compatible with AW‑RM50G, AW‑RP60GJ
• Additional Functions: White balance, manual/auto gain, shutter speed 1/1–1/16000

Package Contents

• Panasonic AW-UE4KG (Black version)
• USB Cable
• Fall Prevention Wire
• Mounting Bracket Kit (Wall/Ceiling/Tripod)
• 1/4″-20 Screw + 4 M4 (10 mm) Screws + 4 M4 (5 mm) Screws
• 1-Year Official Warranty

FAQ

Q: Is the AW‑UE4WG Zoom certified?

A: Yes, it is Zoom Certified and fully compatible with Zoom, Microsoft Teams, Google Meet, and others via USB UVC.

Q: Can I power it without a dedicated AC adapter?

A: Absolutely – it supports both USB power and PoE, making it flexible for any setup.

Q: Does it include a microphone?

A: Yes, it features a built-in stereo microphone with mute control and automatic level adjustment (ALC).

Q: Is it suitable for live streaming?

A: Definitely – it supports RTMP and RTMPS protocols for direct streaming to YouTube, Facebook Live, and more.
