Canon
RC-SK5

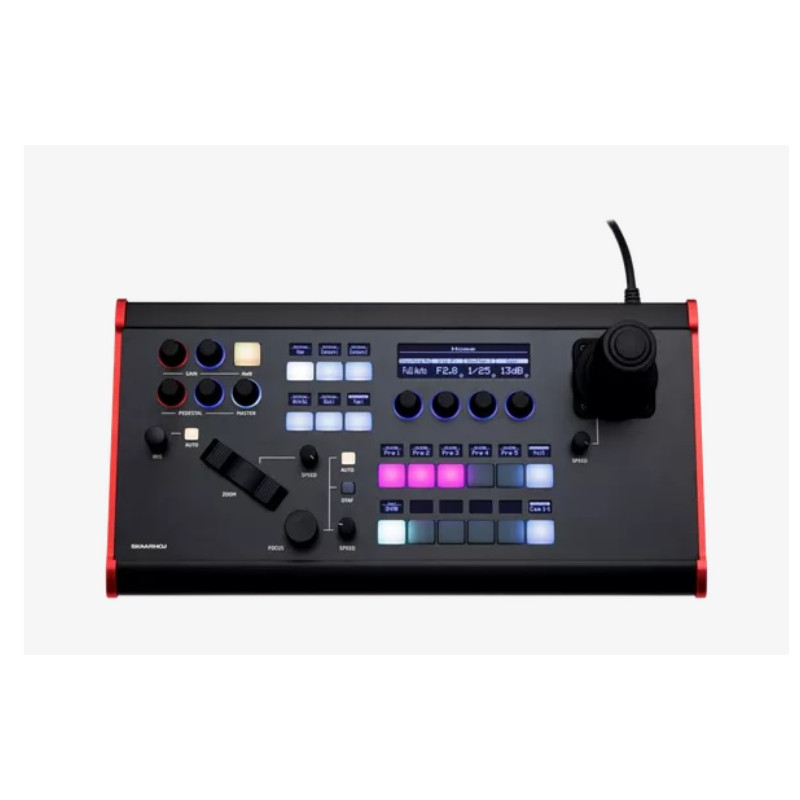

Made by renowned panel manufacturer SKAARHOJ exclusively for Canon, the RC-SK5 controller combines Canon's XC protocol with a professional quality joystick and zoom lever, controls and presets to give your multi-camera production the versatility needed to make professional video.

Out of Stock
€3,722.28
Tax included
Quantity

Create a seamless multi-camera workflow

Integrate and control multiple Canon PTZ and video cameras across your production via IP, using the Canon XC protocol.

Precision control and adjustment

The professional-quality, ergonomically designed joystick provides a tactile, responsive link to each connected camera, for intuitive control and precision.

Monitor with smooth, accurate control

Easily move from wide angle to telephoto with a zoom lever that works like a professional video camera. Stay in control with dedicated Iris, Focus, R & B Gain, Master and Pedestal buttons.

Versatile control with multiple command sets

The RC-SK5 features 20 command set choices that control four tasks each, providing up to 80 sets. Gain greater responsiveness and flexibility by pre-programming angles and transitions. All presets are displayed on the panel for monitoring and control.

Connect to a wider SKAARHOJ ecosystem

The RC-SK5 can be connected to other SKAARHOJ products, such as the Frame Shot Pro side panel, which offers even more intuitive control with color images of stored positions.

Connect to third-party devices

With an additional paid license, the SKAARHOJ RC-SK5 gives you the freedom to extend, customize and connect to other products and devices from different manufacturers.

Detailed Specifications

General
  • Power (adapter)
    DC 12 V
  • Power (PoE)
    Yes (PoE)
  • External Dimensios  (W x H x D)
    349 x 143 x 179 mm
  • Weight
    1,95 Kg
  • Operating Temperature
    Da 0 a 40°C
  • LCD Display
    -
  • Supported Protocols
    XC Protocol (IP)
    *Optional additional license for greater connectivity

Connection Specifications

  • N. of Connectable Cameras
    10 (IP)
    (Registered camera can be changed from UI)
  • N. of Camera Groups
    -

Input/Output

  • Power
    DC 12 V/PoE+
  • Video IN/OUT
    -
  • Serial Interface
    -
  • Tally/GPIO
    IP (requires additional license)
  • Touch Screen Video Display
    -
  • Touch Focus screen
    -
  • USB
    Yes

MEMORY

  • Preset
    Up to 100 for each camera (depending on camera specifications)
  • Hard button support for presets
    Yes
  • Track
    Yes

Control panel

  • Menu Control
    Yes (20 sets of menu)
  • N. of user buttons
    -
  • Focus via touch screen
    -
  • N. of selectable camera buttons
    5+1

Other

  • PC-free initial camera settings
    -
  • Multi-camera setup simultaneously
    -

: RC-SK5
