AVMATRIX
PTZ1271-20XP

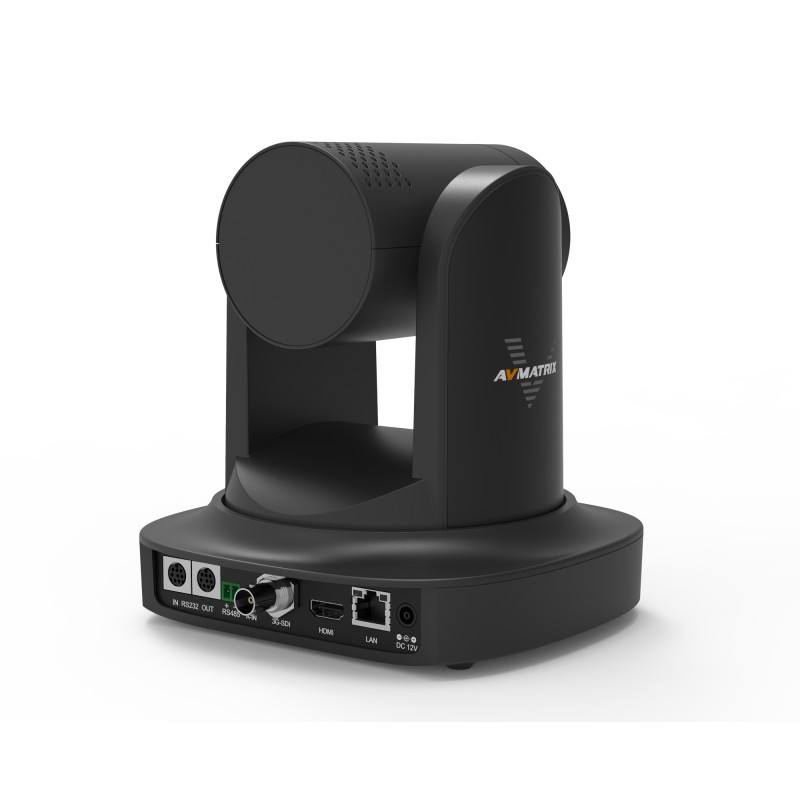

Add a powerful PTZ camera setup with HD video capture to your production with this PTZ1271-20X-POE Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-20X-POE also supports VISCA, PELCO-D, and PELCO-P control protocols.

Out of Stock
€890.69
Tax included
Quantity

Add to Compare
Add to Wishlist

Key Specs

Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.07 Megapixel
Optical Zoom Ratio 20x
Max Digital Zoom 10x
External Recording Modes SDI/BNC/HDMI
1920 x 1080p
Broadcast Output NTSC
IP Streaming RTMP, RTSP, SRT
1920 x 1080
Supported Control Protocols Pelco-D
Pelco-P
VISCA
PoE Support PoE 802.3af
Mounting 1x 1/4"-20 Female for Tripod


Imaging

Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.07 Megapixel
Built-In ND Filter No
Focus Control Autofocus


Exposure Control

Signal-to-Noise Ratio 55 dB
Flip / Mirror Support Image Flip
White Balance 3000 to 7000K


Lens

Focal Length 5.5 to 110mm
Optical Zoom Ratio 20x
Max Digital Zoom 10x
Field of View 54.7 to 3.3°
Maximum Aperture f/1.6 to 3.5


Video Capture

External Recording Modes SDI/BNC / HDMI
1920 x 1080p
Broadcast Output NTSC
IP Streaming RTMP, RTSP, SRT
1920 x 1080


Control

Presets 255
Move Speed Pan: 0.1 to 180°/sec
Tilt: 0.1 to 80°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols Pelco-D
Pelco-P
VISCA

Interface

Video I/O 1x BNC (3G-SDI) Output
1x HDMI Output
Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O 1x RJ45 (LAN)
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output
1x Block (RS-485) Input


Power

PoE Support PoE 802.3af
Power I/O 1x Barrel Input
Power Consumption Device: 12 VDC at 1 A (12 W)


Environmental

Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 20 to 80% ()
Storage Humidity 20 to 95% (Non-Condensing)


General

Mounting 1x 1/4"-20 Female for Tripod
Dimensions (W x H x D) 6.7 x 7.1 x 6.7" / 170 x 180.31 x 170 mm
Weight 2.76 lb / 1.25 kg


Packaging Info

Package Weight 4.765 lb
Box Dimensions (LxWxH) 10.5 x 9.8 x 9.2"

: PTZ1271-20XP
