AVMATRIX
PTZ1270-12XP

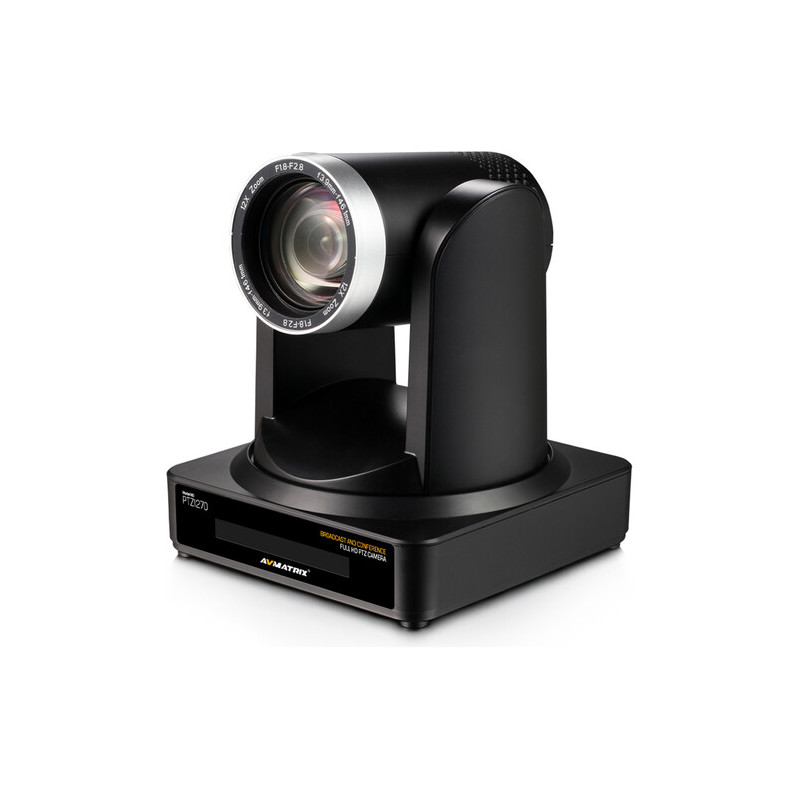

The black PTZ1270 Full HD PTZ Camera from AVMatrix offers precision control and multiple output ports offering up to 1080p60 video. Designed for broadcast, security, and teleconferencing needs, the PTZ1270 also supports VISCA, PELCO-D, and PELCO-P control protocols. The integrated f/1.6-3.5 lens offers 20x optical and 10x digital zoom functions. This camera supports up to 1080p60 video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. An NDI streaming option is available separately.

Out of Stock
€1,247.74
Tax included
Quantity

Add to Compare
Add to Wishlist

Key Specs

Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.07 Megapixel
Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux


Camera

Max Digital Zoom 10x


Lens

Focal Length 5.2 to 98mm
Optical Zoom Ratio 20x
Max Digital Zoom 10x
Field of View 54.7 to 3.3°
Maximum Aperture f/1.6 to 3.5
Focus Control Autofocus


Video Output

Output Formats SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
IP Streaming ONVIF, RTMP, RTSP: 1080p


Control

Presets 255 via RS-232, VISCA 10 via IR
Move Speed Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec
Movement Range Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
Supported Control Protocols Pelco-D / Pelco-P / VISCA


Video Capture

External Recording Modes SDI/BNC/HDMI
1920 x 1080p at 25/29.97/50/59.94 fps
Broadcast Output NTSC
IP Streaming NDI|HX, ONVIF, RTMP, RTSP
1920 x 1080


Control

10 via IR

Presets 255 via RS-232, VISCA
Move Speed Pan: 0.1 to 180°/sec
Tilt: 0.1 to 80°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols Pelco-D
Pelco-P
VISCA

Interface

Video Output Connectors 1x HDMI (HDBaseT) Output
1x BNC (3G-SDI) Output
Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Line Input
Control Interface 1x RJ45 (Pelco-D, Pelco-P, VISCA)
1 x 8-Pin Mini-DIN (RS-232) Input
1 x 8-Pin Mini-DIN (RS-232) Output
1 x 2-Wire (RS-485)


Power

Power Connectors 1 x Barrel / Coaxial (12 VDC at 1 A)


Environmental

Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 20 to 80% ()
Storage Humidity 20 to 95% (Non-Condensing)


General

Mounting 1x 1/4"-20 Female for Tripod
Dimensions (W x H x D) 6.6 x 5.9 x 5.9″ / 167.5 x 150 x 150 mm
Weight 3.08 lb / 1.4 kg
