AVMATRIX
PTZ1270-12X

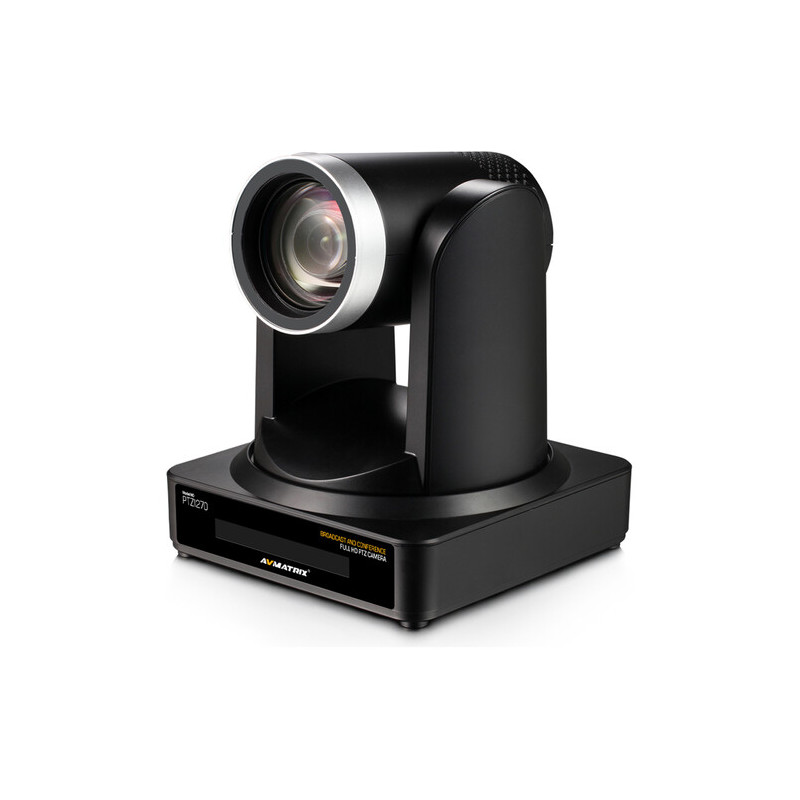

The black PTZ1270 Full HD PTZ Camera from AVMatrix offers precision control and multiple output ports offering up to 1080p60 video. Designed for broadcast, security, and teleconferencing needs, the PTZ1270 also supports VISCA, PELCO-D, and PELCO-P control protocols. The integrated f/1.8-2.4 lens offers 12x optical and 10x digital zoom functions. This camera supports up to 1080p60 video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. An NDI streaming option is available separately.

Out of Stock
€1,185.00
Tax included
Quantity

Add to Compare
Add to Wishlist

Key Specs

Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.07 Megapixel
Optical Zoom Ratio 12x
Max Digital Zoom 10x
External Recording Modes - SDI/BNC/HDMI
1920 x 1080p
Broadcast Output NTSC
IP Streaming NDI|HX, ONVIF, RTMP, RTSP - 1920 x 1080
Supported Control Protocols Pelco-D / Pelco-P / VISCA
Mounting 1x 1/4"-20 Female for Tripod


Imaging

Image Sensor 1/2.8"-Type CMOS
Sensor Resolution Effective: 2.07 Megapixel
Built-In ND Filter No
Focus Control Autofocus


Exposure Control

Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux
Flip / Mirror Support Image Flip, Mirror (Vertical)
White Balance 3000 to 6500K


Lens

Focal Length 3.9 to 46.8mm
Optical Zoom Ratio 12x
Max Digital Zoom 10x
Field of View 72.5 to 6.3°
Maximum Aperture f/1.8 to 2.4


Video Capture

External Recording Modes SDI/BNC / HDMI - 1920 x 1080p at 25/29.97/50/59.94 fps
Broadcast Output NTSC
IP Streaming NDI|HX, ONVIF, RTMP, RTSP - 1920 x 1080


Control

Presets 255 via RS-232, VISCA - 10 via IR
Move Speed Pan: 0.1 to 180°/sec - Tilt: 0.1 to 80°/sec
Movement Range Pan: 340° (-170 to 170°) - Tilt: 120° (-30 to 90°)
Supported Control Protocols Pelco-D / Pelco-P / VISCA

Interface

Video I/O 1x HDMI (HDBaseT) Output< - 1x BNC (3G-SDI) Output
Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O 11x RJ45 (Pelco-D, Pelco-P, VISCA) Control
1x Mini-DIN 8-Pin (RS-232) Control Input
1x Mini-DIN 8-Pin (RS-232) Control Output
1x Block 2-Pin (RS-485) Control


Power

Power I/O 1x Barrel (12VDC at 1 A) Input
Power Consumption Device: 12 VDC at 1 A (12 W)


Environmental

Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 20 to 80% ()
Storage Humidity 20 to 95% (Non-Condensing)


General

Mounting 1x 1/4"-20 Female for Tripod
Dimensions (W x H x D) 5.9 x 6.6 x 5.9" / 15 x 16.75 x 15 cm
Weight 3.08 lb / 1.4 kg


Packaging Info

Package Weight 4.715  lb
Box Dimensions (LxWxH) 10.5 x 9.8 x 9.2"

: PTZ1270-12X
