Professional 7" Swit LCD Full HD Super Bright 3000 nit – 3G-SDI, 4K-HDMI Monitor

FULL DESCRIPTION

The Professional 7" Swit LCD Full HD Super Bright 3000 nit – 3G-SDI, 4K-HDMI Monitor is designed for videographers, ENG operators, and cinema professionals who require flawless visibility even in bright lighting conditions. The 1920×1200 IPS screen ensures high resolution and 1200:1 contrast, while 3000 nits brightness provide full visibility under direct sunlight. HDR support with PQ/HLG and 30 pre-installed De-log LUTs enables fast log-to-Rec709 conversion and real-time content review. Perfect for mobile studios, ENG sets, and outdoor productions, it allows instant analysis with professional tools and an intuitive joystick interface.

KEY FEATURES

• Super Bright 3000 nit & HDR: Intense brightness for outdoor use, supporting PQ and HLG.
• Professional connectivity: 3G/HD/SD-SDI inputs and loop-through, HDMI 1.4 (4K30p).
• Advanced monitoring tools: Waveform, vectorscope, histogram, and 2-channel audio meter.
• Focus assist, zebra, and false color: Including Super False Color mode.
• 30 Pre-installed De-log LUTs: S-Log2/3, V-Log, Canon C-Log, ARRI, RED, and importable via SD card.
• Superior ergonomics: 5-way joystick, 2×/4× zoom, pan, and customizable scene saving.

TECHNICAL SPECIFICATIONS

• Display: 7" IPS – 1920×1200 Full HD (16:9), 3000 nits, 1200:1 contrast ratio, 16.7 million colors, 160° viewing angle.
• Video In/Out: BNC 3G/HD/SD-SDI (in/out), HDMI-A 1.4 (4K30p) with loop-through.
• Supported formats: SDI up to 2048×1080p/i, HDMI up to 4K@30fps.
• Audio: 3.5mm headphone output, stereo audio meter.
• Power supply: DC 11–17V (5.5×2.1mm connector), built-in NP-F battery plate, optional V-mount, max power consumption 18.8W.
• Dimensions and weight: 192 × 116.3 × 24.7 mm, approx. 450 g.
• Monitoring tools: Waveform, vectorscope, histogram, crosshatch, safe markers, peaking, LUT, zebra, anamorphic de-squeeze (1.3×, 2×, 2× MAG).

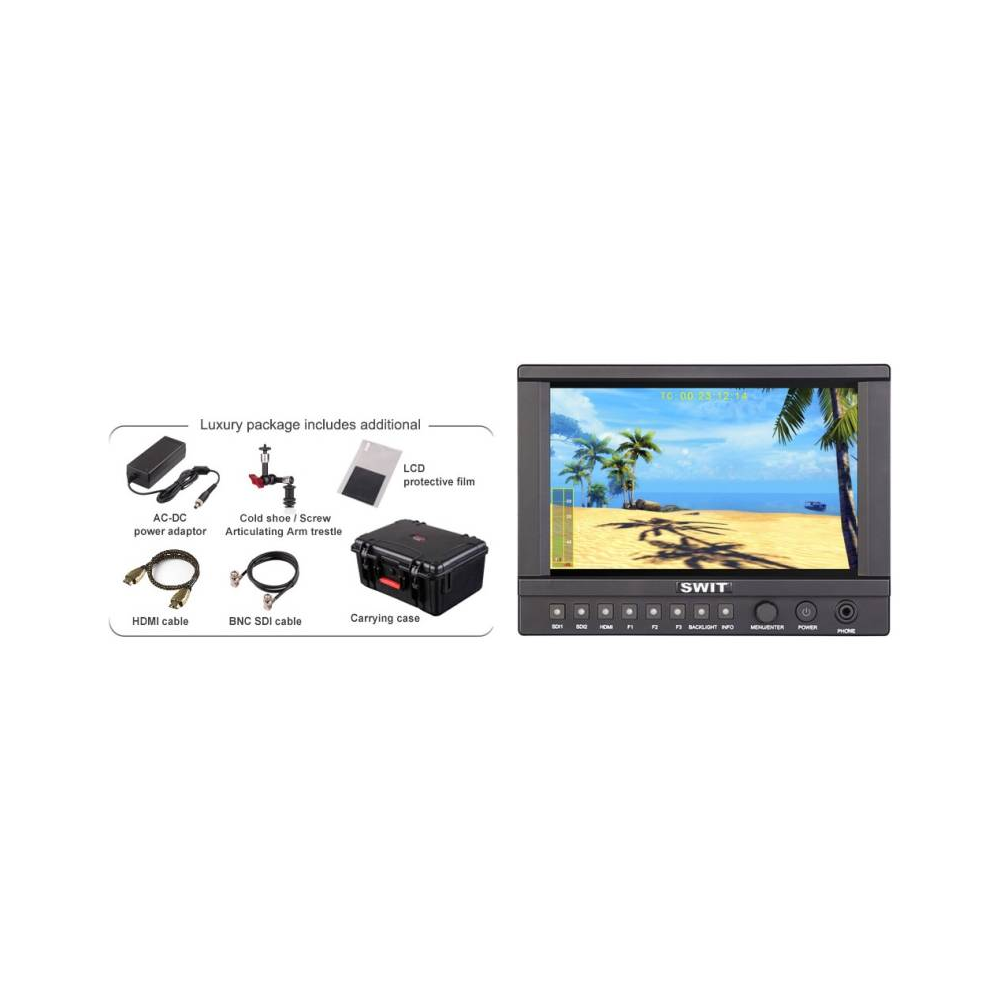

WHAT'S IN THE BOX

• Swit 7" CM-S75F Monitor
• AC-DC Power Adapter with Lockable Cable
• SDI Cable (BNC)
• HDMI Cable
• Sunshade
• NP-F Battery Plate; optional V-mount plate
• Carrying Case
• Cold-shoe / Ball-head 1/4" Mounting Bracket
• User Manual and Technical Sheet

FAQ

Is the monitor visible under direct sunlight?

Yes, the 3000 nit brightness ensures optimal visibility even outdoors in direct sunlight.

Does it support HDR?

Yes, it supports HDR formats PQ and HLG and includes HDR/pre-log LUTs for professional monitoring.

Can I import custom LUTs?

Yes, you can load up to 16 LUTs (33³ or 65³) via an SD card.

What power options are supported?

It supports DC 11–17V power input, includes an NP-F battery plate, and optionally supports V-mount batteries; maximum power consumption is 18.8W.

Does it have a built-in speaker or just headphone output?

It features a built-in speaker and a 3.5mm headphone output with 2-channel stereo audio monitoring.
