DJI
DJR403

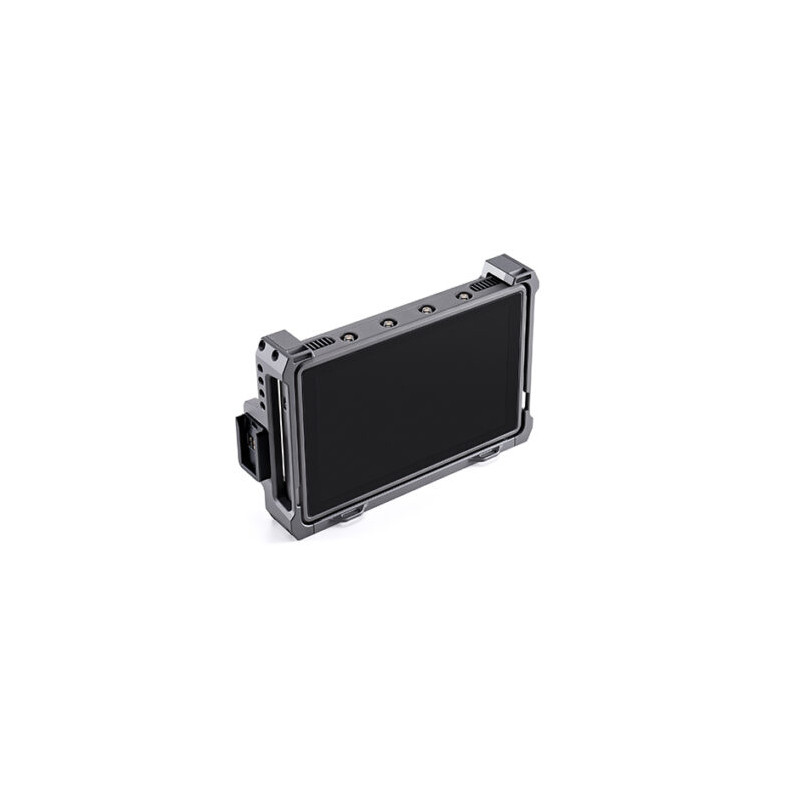

Use the DJI High-Bright Remote Monitor to view footage from your Ronin 4D setup to provide crew members a remote view of what your gimbal is capturing. Nestled inside the included cage and receiving a wireless feed via its integrated receiver, the monitor can be used by the director to view the shot, remotely focus, or control gimbal movement.

Out of Stock
€1,319.00
Tax included
Quantity

Add to Compare
Add to Wishlist

DJI Wireless Monitor Overview

Use the DJI High-Bright Remote Monitor to view footage from your Ronin 4D setup to provide crew members a remote view of what your gimbal is capturing. Nestled inside the included cage and receiving a wireless feed via its integrated receiver, the monitor can be used by the director to view the shot, remotely focus, or control gimbal movement.
At 7" in diameter, the monitor is neither so large as to be hard to handhold, nor so small that the 1920 x 1200 resolution makes the images difficult to see. And the 1500 cd/m² maximum brightness means you can use this monitor on both exterior and interior shoots. You can power the monitor directly from the gimbal by a power cable, or you can use a DJI WB37 battery. An included L-series adapter allows you to use an L-series battery.

Display

Panel Type LCD
Display Size  7"
Resolution  1920 x 1200
Maximum Brightness  1500 nits / cd/m2
USB I/O  1 x USB-C 3.0 / 3.1/3.2 Gen 1 Integrated Male Input/Output
Video I/O  1x HDMI Input
Audio I/O  1x 1/8" / 3.5 mm Output
Media/Memory Card Slot  Single Slot: microSD/microSDHC

Power

Power Source Battery

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C

Physical

Mounting Multiple x 1/4"-20
Cable Length Not Specified by Manufacturer
Dimensions 8.5 x 6.5 x 2.3" / 216 x 166 x 58 mm (Includes Cage)
Weight Not Specified by Manufacturer

Compatibility

DJI Ronin 4D
: DJR403
Out of Stock

Specific References

EAN13
6941565922250
