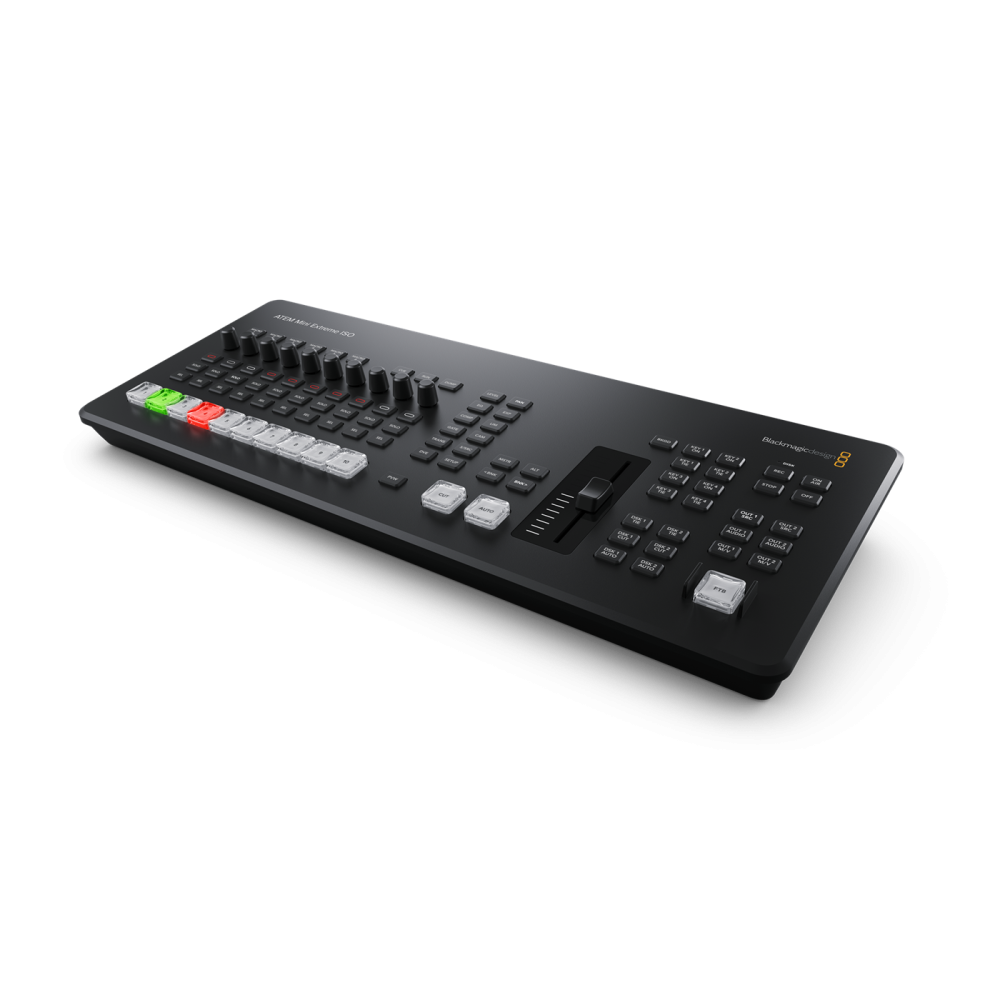

Blackmagic ATEM Mini Extreme ISO G2

DESCRIPTION

The Blackmagic ATEM Mini Extreme ISO G2 is a powerful yet compact live production switcher designed to deliver professional broadcast‑quality performance. Featuring 8 HDMI 10‑bit HD inputs, 16‑way multiview, and simultaneous ISO recording of all inputs plus program to CFexpress or USB‑C storage, it’s ideal for podcasters, broadcasters, educators, and content creators. With Thunderbolt, CFexpress slot, USB‑C, and 1G/10G Ethernet ports, it integrates seamlessly into DaVinci Resolve workflows for multi-cam editing and advanced grading.

The front control panel includes illuminated NKK buttons, a physical fader, Fairlight audio controls, and enhanced multiview functionality. Broadcast-grade features include 4 upstream keyers, 2 DVE with border/shadow, chroma effects, and custom transitions. USB‑C webcam output (1080p60), RTMP/SRT streaming, and pro-grade networking make it perfect for live events, remote learning, or hybrid production setups.

KEY FEATURES

• 8 HDMI 10‑bit HD inputs with resync and auto format conversion
• Simultaneous ISO recording of all sources + program to CFexpress or USB‑C drives
• Built-in RTMP/SRT live streaming via Ethernet or USB‑C
• 3 independently assignable HDMI outputs
• 10G Ethernet for CFexpress media sharing and fast network access
• Thunderbolt for real-time capture/playback and DaVinci Resolve integration
• Professional Fairlight audio with XLR combo and MADI digital input
• Built-in effects: chroma key, DVE, transitions, media pool

TECHNICAL SPECIFICATIONS

• Video Standards: 720p50/59.94/60, 1080p23.98–60, 1080i50/59.94/60
• Video Inputs: 8 × HDMI Type-A (10‑bit HD, embedded audio, resync)
• Video Outputs: 3 × assignable HDMI, USB‑C webcam out 1080p60
• Audio Inputs: 2 × XLR combo (phantom power), 1 × BNC MADI input
• Audio Outputs: 1 × 6.35 mm TRS headphone jack
• Connections: 2 × USB‑C, 1 × Thunderbolt, 1 × Ethernet 1G, 1 × Ethernet 10G
• Effects: 4 upstream keyers, 2 DVE, 2 media players, color and pattern generators
• Storage: Built-in CFexpress slot + USB‑C external drive support
• Software: ATEM Software Control, DaVinci Resolve, Final Cut Pro, Premiere Pro
• Power: 12 V DC external PSU, max power 120 W
• Dimensions: Approx. 41.4 × 18.7 × 5 cm – Weight: ~1.85 kg
• Operating Conditions: 5–40 °C, 0–90% RH non-condensing

WHAT’S IN THE BOX

• 1 × Blackmagic ATEM Mini Extreme ISO G2
• 1 × 12 V DC power supply with international adapters
• 1 × Ethernet cable
• 1 × Documentation and warranty

FAQ

Q: Can I record each camera input separately?

A: Yes, it records each HDMI input in ISO plus the program output, including DaVinci Resolve project file.

Q: Does it support SRT streaming?

A: Yes, it supports both RTMP and SRT streaming protocols over Ethernet or USB‑C.

Q: Can I use it as a webcam for Zoom?

A: Absolutely. The USB‑C webcam output is recognized as a camera by Zoom, Teams, and others.
