Nanlite PavoSlim 60B – Specifications, Advantages & Packaging

FULL DESCRIPTION

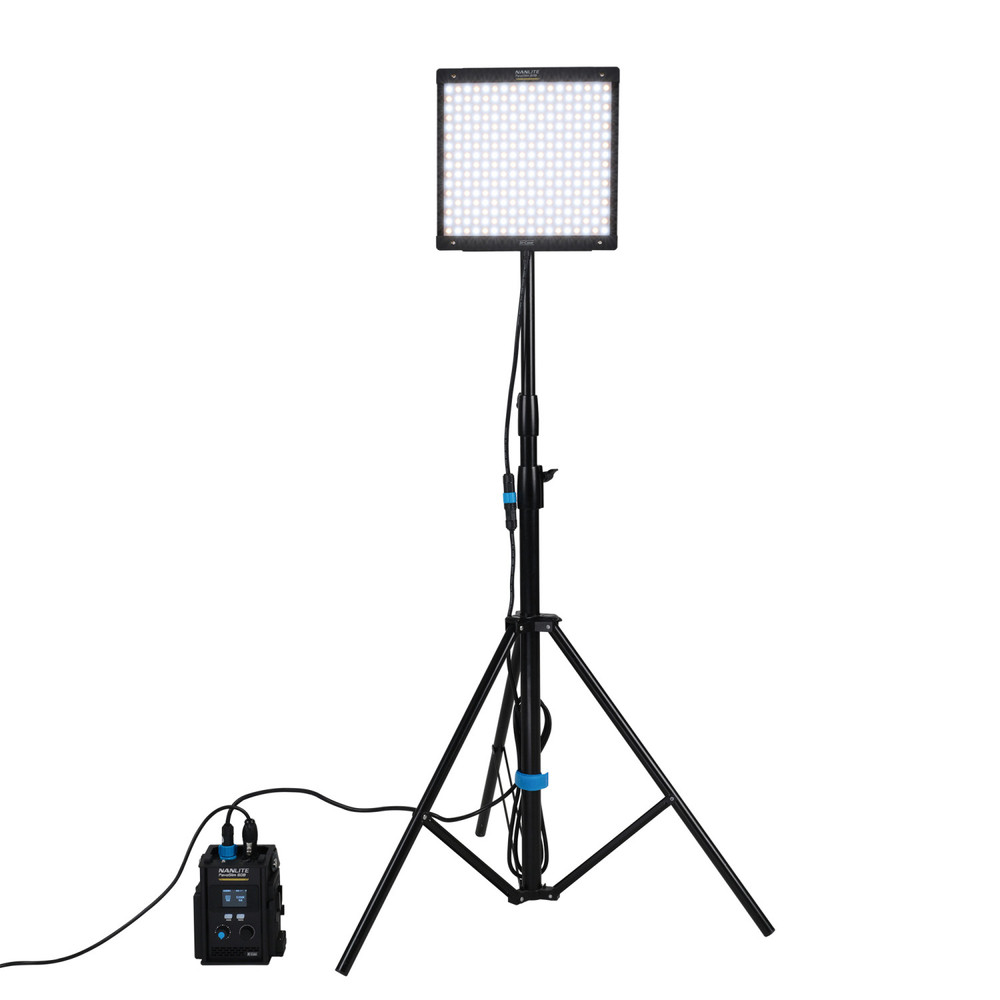

The Nanlite PavoSlim 60B is a 1x1 bi-color LED panel (2700–6500 K) with a record-thin depth of just 0.73" (~1.9 cm) and a lightweight design at around 0.9 kg, featuring an external control unit. It offers a maximum brightness of 8156 lux at 1 m (5600 K) and operates silently thanks to passive metal heat dissipation.

Designed for photographers, videographers, streamers, and broadcast professionals, the unit supports fast setup and excellent portability. External control (Bluetooth, 2.4 GHz, DMX/RDM) allows adjustment of brightness, color temperature, and effects remotely.

KEY FEATURES

Ultra-thin & Portable

• Only 1.9 cm thick and weighs just 0.9 kg
• Metal construction for durability and reliability

High Output

• 8156 lux (757 fc) @1 m at 5600 K
• 7433 lux (690 fc) @1 m at 3200 K

Accurate Color Rendering

• CRI 95, TLCI 97
• CCT stability < ±50 K during dimming

Flexible Control

• 0–100% dimming range
• Bluetooth via NANLINK, 2.4 GHz, DMX/RDM
• External controller with display and knobs

Multi-power Options

• AC (100–240 VAC)
• Dual NP-F battery plates and integrated V-Mount

Quick-open Softbox & Accessories

• Quick-open softbox with 2 diffusers and eggcrate grid
• Baby-pin bracket, swivel holder, quick clamp, padded case

Built-in Effects

• 12 lighting effects: CCT loop, flash, storm, candle, TV, welding, etc.

TECHNICAL SPECIFICATIONS

• Power: 72 W
• LED Type: Bi-color, 2700–6500 K
• Lux Output: 7433 @3200 K, 8156 @5600 K
• CRI/TLCI: 95/97
• Beam Angle: 60°
• Dimming: 0–100%, linear
• Power Input:
  • AC 100–240 VAC 50/60 Hz
  • DC 14.4–26 V (V-Mount)
  • NP-F ×2 (7.4 V)
• Control: Onboard, Bluetooth, 2.4 GHz, DMX/RDM
• Dimensions: 30.6 × 30 cm, thickness 1.9 cm
• Weight: 0.9 kg (panel) + external controller
• Operating Temp: –20 °C to +45 °C
• Cooling: Passive, silent
• Effects: 12 built-in presets
• Mounting: ¼-20, baby-pin, clamp
• Structure: Durable aluminum build

WHAT’S IN THE BOX

• 1 × PavoSlim 60B Bi-Color LED Panel
• 1 × Control Unit (NP-F ×2 and V-Mount plates)
• 1 × Baby-pin holder
• 1 × Swivel holder
• 1 × Quick-release clamp
• 1 × 2.6 m DC Cable
• 1 × 4.5 m AC Cable
• 1 × Quick-open softbox
• 2 × Diffusers (1.5 stop + 2.5 stop)
• 1 × Eggcrate Grid
• 1 × Padded Carrying Bag
• 1 × User Manual
• Warranty: 2 years (extendable to 3 with registration)

FAQ (snippet-optimized & voice search-ready)

"What’s the difference between 60B and 60C?"

The 60B is bi-color (2700–6500 K); the 60C is RGBWW with CMY control and preset color modes. Choose 60B for simple, high-quality bi-color lighting.

"Can I fly with NP-F batteries?"

Yes. NP-F batteries (≤ 100 Wh) comply with airline carry-on regulations.

"Is the softbox included?"

Yes. The panel comes with a quick-open softbox included in the package.

"Does it have a cooling fan?"

No. It features a passive aluminum heat sink for completely silent operation—ideal for video sets.

"What is the warranty?"

2 years standard, extendable to 3 years with product registration on Nanlite’s website.
