KEY FEATURES

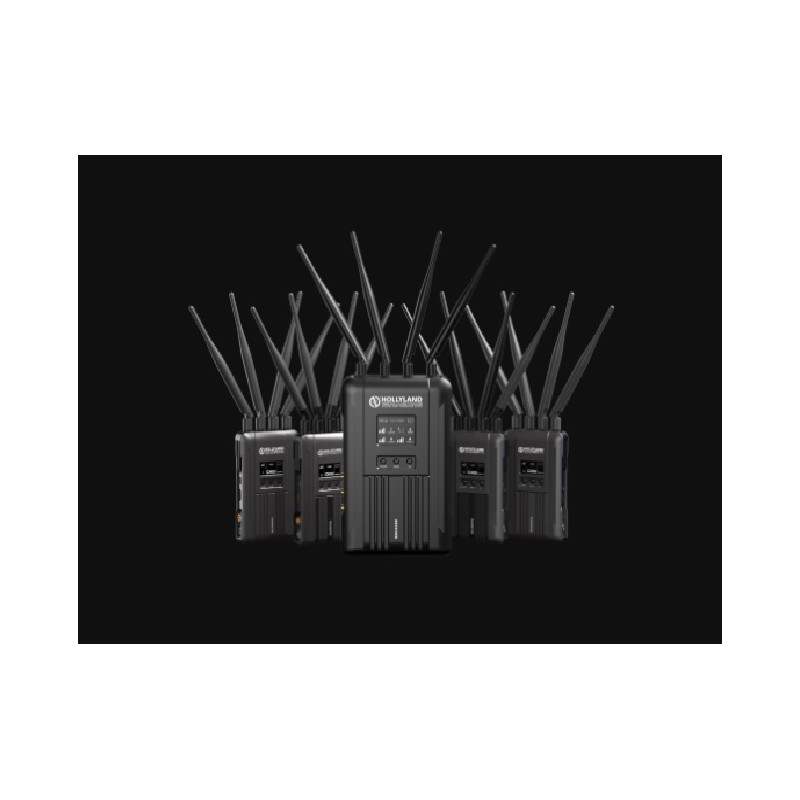

The Syscom 421S Hollyland is designed to meet large-scale video production needs. With the ability to support up to 4 transmitters on the same RF channel, it is perfect for weddings, sports events, music concerts, corporate meetings, and more. Its advanced interference protection technology ensures synchronized and stable audio and video transmission.

TECHNICAL SPECIFICATIONS

• Transmission Range: Up to 550 meters (1800 feet)

• Latency: Ultra-low, just 0.07 seconds

• Input Interfaces: SDI (BNC female) and HDMI (Type A female)

• Output Interfaces: Four SDI and four HDMI

• Compatibility: RS485/RS422/LAN for PTZ camera and switcher control

• Tally Light Support: Optimizes production quality in multi-camera setups

• RJ45 Pinout Support: For Ethernet pass-through between RX and each TX, and RTSP streaming

• Power Consumption: Less than 12W

• Weight: 431.5 g (excluding external antenna)

• Dimensions: 88 mm x 30 mm x 144 mm (excluding external antenna and battery plate)

• Video Format: HDMI: 480p60 Hz, 576p50 Hz, 720p50/60 Hz, 1080i50/60 Hz, 1080p24/25/30/50/60 Hz

• SDI: 720p50/60 Hz, 1080i50/60 Hz, 1080p24/25/30/50/60 Hz

• Frequency: 5.1-5.9 GHz

• TX Power: Maximum 22 dBm

• RX Sensitivity: Transmission latency 0.07 s

• Bandwidth: 40 MHz

WHAT'S IN THE BOX

1. Transmitter x 4

2. Receiver x 1

3. 5 GHz Antenna x 25

4. User manual

5. 7" Magic Arm x 4

6. OTG Cable x 1

7. DC Conversion Cable x 4

8. RS485/RS422 Cable x 5

9. Power Adapter x 1
