AVMATRIX
SD2080

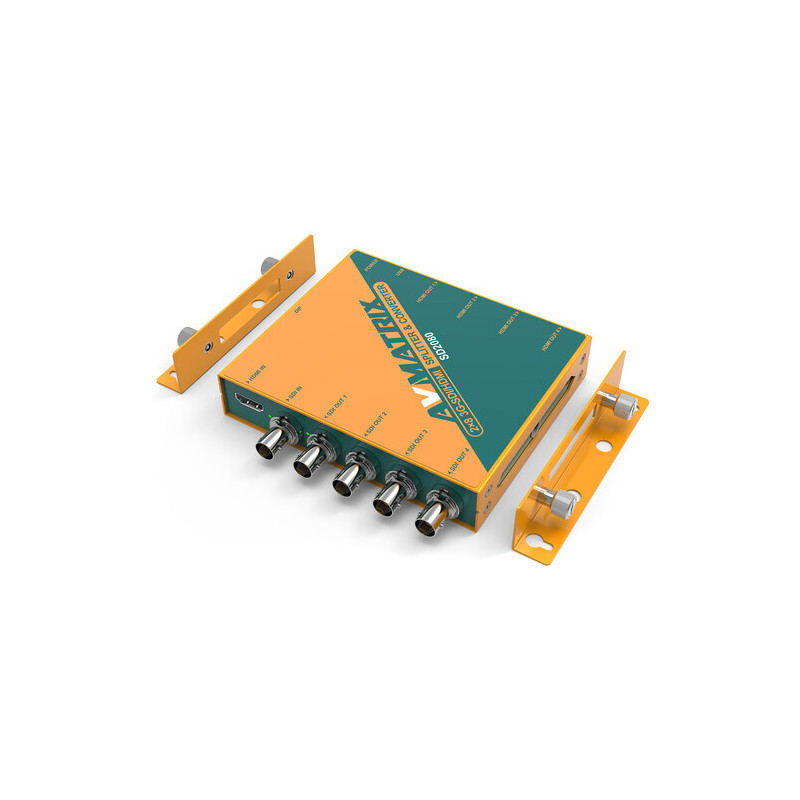

Auto-detected input: 1×HDMI/1×3G-SDI; Pass through output: 4×3G-SDI, 4×HDMI; Distribute and convert between SDI & HDMI; SDI with equalization and re-clock; Input and output support up to 1080p60; Switching input signal easily via DIP switches; USB and threaded locking DC power supply; Detachable bracket design for wall mounting

Out of Stock
€433.73
Tax included
Quantity

Add to Compare
Add to Wishlist

Lilliput SD2080 Specs

Key Specs

Inputs 1 x BNC (3G-SDI)
1 x HDMI
Outputs 4x BNC (3G-SDI)
4x HDMI
Video Format SDI Input (4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 25/29.97/30/50/59.94/60 fps
NTSC
PAL

SDI Output (4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC
PAL

HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 25/29.97/30/50/59.94/60 fps
NTSC
PAL


Interfaces

Inputs 1 x BNC (3G-SDI)
1 x HDMI
Outputs 4x BNC (3G-SDI)
4x HDMI
Other I/O 1x Micro-USB


Standards

Video Standard Compliance SMPTE 259M/292M/424M
Reclocking Yes
HDR Compatibility No
HDCP Support No
EDID Support No

 Transmission

Video Format SDI Input (4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 25/29.97/30/50/59.94/60 fps
NTSC
PAL

SDI Output (4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
 1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC
PAL

HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 25/29.97/30/50/59.94/60 fps
NTSC
PAL

Power

Power I/O 1x Barrel (12 VDC) Input
Power Consumption (6.6 W)
ESD Protection No

 Environmental

Operating Temperature 12 to 92°F / -20 to 60°C
Storage Temperature -22 to 158°F / -30 to 70°C
Operating Humidity 0 to 90%

 General

Dimensions 4.9 x 4.1 x 1.0" / 125.5 x 104.0 x 24.5 mm
Weight 17.1 oz / 485 g

 Packaging Info

Package Weight 2.48 lb
Box Dimensions (LxWxH) 7 x 7 x 3.6"
