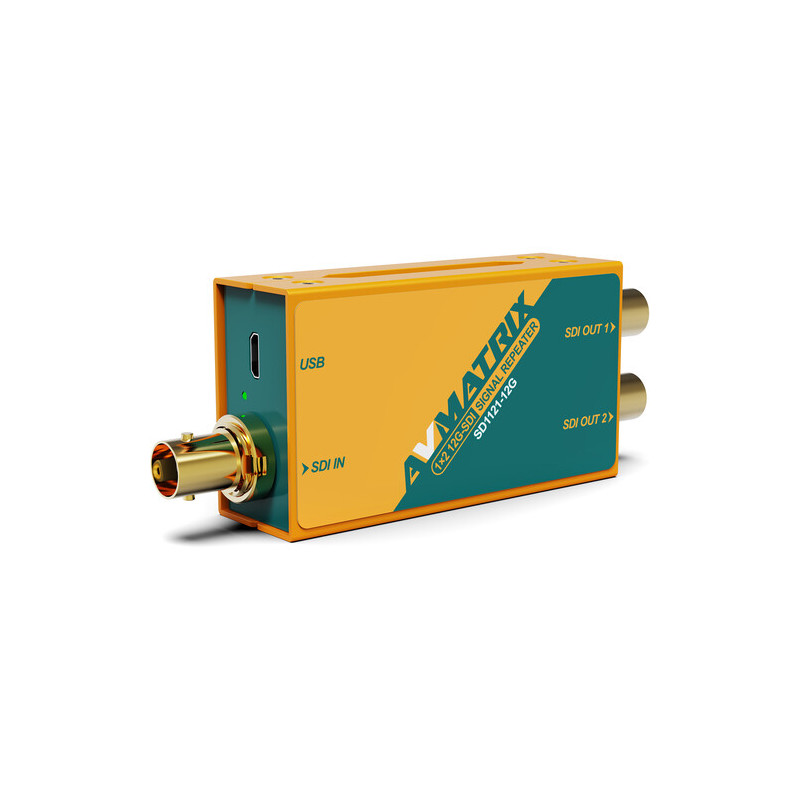

AVMATRIX
SD1121-12G

Distribute up to a 12G-SDI video input signal to two outputs with the AVMATRIX 1x2 12G-SDI Reclocking Signal Repeater for optimal transmission in broadcast control room applications. One BNC input and two BNC outputs automatically detect 12G, 6G, 3G, HD, or SD signals while equalizing and reclocking them up to 328'.

Out of Stock
€270.30
Tax included
Quantity

Add to Compare
Add to Wishlist

Features

  • Input: 1×12G-SDI, Output: 2×12G-SDI
  • Automatically detects SD, HD, 3G, 6G and 12G-SDI
  • Support DVB-ASI signal
  • Automatic cable equalization and signal retiming
  • Pass all ancillary data and embedded audio
  • 5V micro USB power
  • Detachable bracket design for wall mounting

Connections

SDI Video Input SDI Video Output

1×SD/HD/3G/6G/12G-SDI (75Ω BNC) 2×SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC)

Power Input Updates

USB Power USB

Standards

SDI Compliance

SDI Format Support SMPTE 259M, SMPTE 292M,

(SD) 625i 50/525i 59.94 SMPTE 296M,

(HD) 1280×720p 60/59.94/50 /30/29.97/25/24/23.98 SMPTE 424M, SMPTE 425M,

(HD) 1920×1080p 30/29.97/25/24/23.98 SMPTE ST-2081, SMPTE ST-2082

(HD) 1920×1080PsF 30/29.97/25/24/23.98 SMPTE 274M

(HD) 1920×1080i 60/59.94/50 ITU-R BT.656, ITU-R BT.601

(2K) 2048×1080p 30/29.97/25/24/23.98 DVB-ASI

(2K) 2048×1080PsF 30/29.97/25/24/23.98

(2K) 2048×1080 i 60/59.94/50 SDI Color Space and Precision

(3G) 1920×1080p 60/59.94/50 RGB 4:4:4 10bit/12bit

(6G) 1920×1080p/2048×1080p 47.95/48/50/59.94/60 YUV 4:2:2 10bit/12bit

(6G) 3840x2160p/4096×2160p 23.98/24/25/29.97/30 YUV 4:4:4 10bit/12bit

(12G) 3840x2160p/4096×2160p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 XYZ 4:4:4 12bit

Power

Power Supply Voltage Range Power Consumption

Micro USB USB 5-5.5V 1.5W (Max)

Physical Specifications

Dimension Gross Weight Net Weight

71×41×23mm 168g 500g
