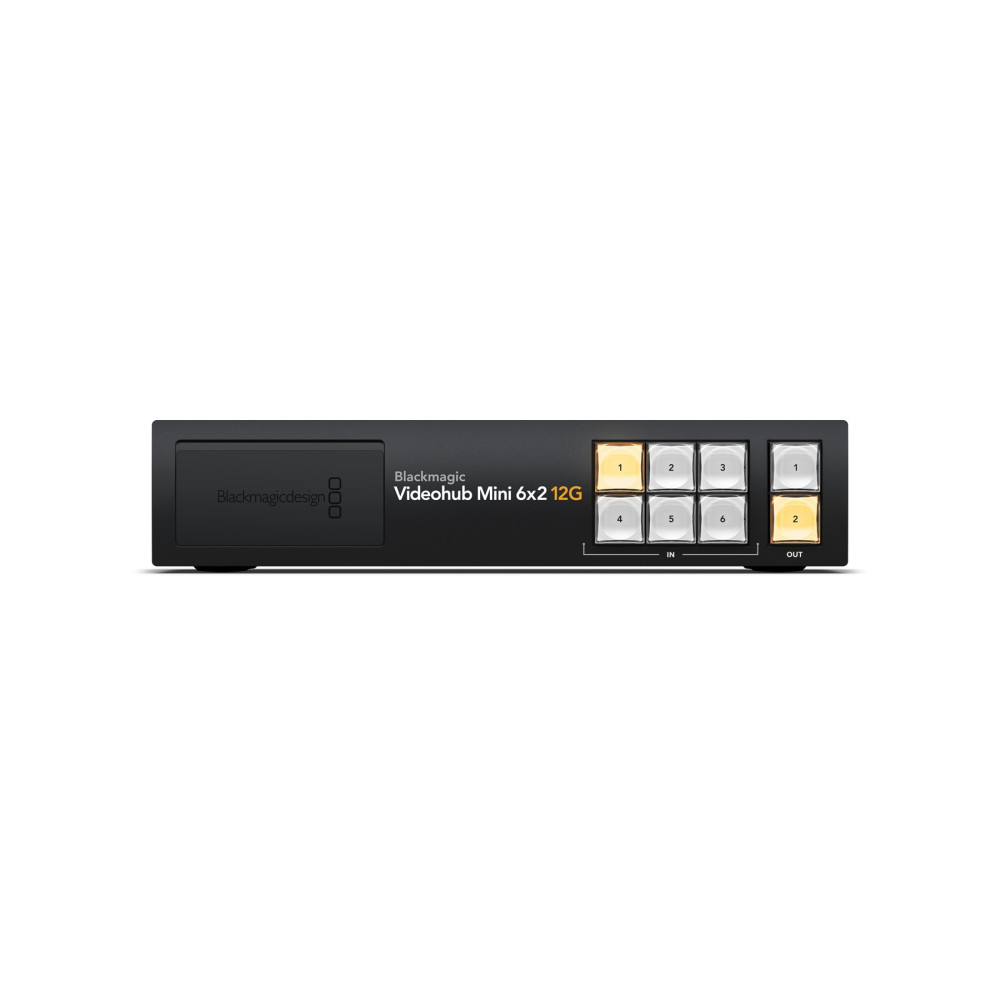

Blackmagic Videohub Mini 6x2 12G

Product Description

The Blackmagic Videohub Mini 6x2 12G is a professional SDI video router designed to manage signal routing in demanding production environments. With 6 inputs and 2 outputs 12G-SDI, it supports a wide range of video formats, including SD, HD, and Ultra HD up to 2160p60. Its compact design and advanced features make it the perfect choice for broadcast studios, OB vans, control rooms, live events, and post-production setups.

The front interface with LCD display and dedicated buttons offers quick and intuitive control, while USB-C and Ethernet connections allow for efficient remote management. The integrated webcam output makes it ideal for streaming and video conferencing use. All within a 1/3U rack form factor that fits any standard rack system.

Main Features

• Supports SD, HD, and Ultra HD signals up to 2160p60
• 6 inputs and 2 outputs 12G-SDI with zero latency
• SDI reclocking to regenerate signals and maintain integrity
• Remote control via Ethernet or USB-C with Videohub Setup software
• Front panel with color LCD, buttons, and knob for navigation
• USB-C output for use as a webcam with streaming or conferencing apps
• Compact 1/3U rack design, ideal for mobile studios and control rooms

Technical Specifications

Connections

• SDI Video Inputs: 6 x 12G-SDI (BNC)
• SDI Video Outputs: 2 x 12G-SDI (BNC)
• Webcam Output: 1 x USB-C
• Ethernet: 1 x 10/100/1000 BASE-T
• Computer Interface: 1 x USB-C for setup and updates
• Reference Inputs: Tri-Sync or Black Burst
• Reference Output: Loop with auto termination

Supported Video Standards

• SD: 525i59.94 NTSC, 625i50 PAL
• HD: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60
• Ultra HD: 2160p23.98/24/25/29.97/30/47.95/48/50/59.94/60
• 4K DCI: 4Kp23.98/24/25/29.97/30/47.95/48/50/59.94/60

SDI Compliance

SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A and B, 2081-1, 2081-10, 2082-10
ITU-R BT.656 and ITU-R BT.601 compatible

Video Sampling

• YUV 4:2:2 and RGB 4:4:4
• Color precision: up to 12-bit
• Supported color spaces: REC 601, REC 709, REC 2020

Control

• Integrated panel with LCD, buttons and rotary knob
• Videohub Setup software via Ethernet or USB-C

Power

• Input: 100–240V AC, 50/60Hz
• Power consumption: approx. 15W

What's in the Box

• Blackmagic Videohub Mini 6x2 12G
• Quick start documentation

Frequently Asked Questions (FAQ)

• What is the purpose of an SDI video router like the Blackmagic Videohub Mini 6x2 12G?
  It allows routing SDI signals from multiple sources to multiple destinations quickly and with zero latency, optimizing workflows in broadcast environments.
• Does it support 4K Ultra HD signals?
  Yes, it supports video signals up to 2160p60 thanks to its 12G-SDI technology.
• Can it be controlled remotely?
  Yes, via Ethernet network or USB-C connection using the free Videohub Setup application.
• Is it suitable for professional productions?
  Yes, it is designed for high-end environments such as television studios, mobile production units, and large-scale live events.
