AVMATRIX

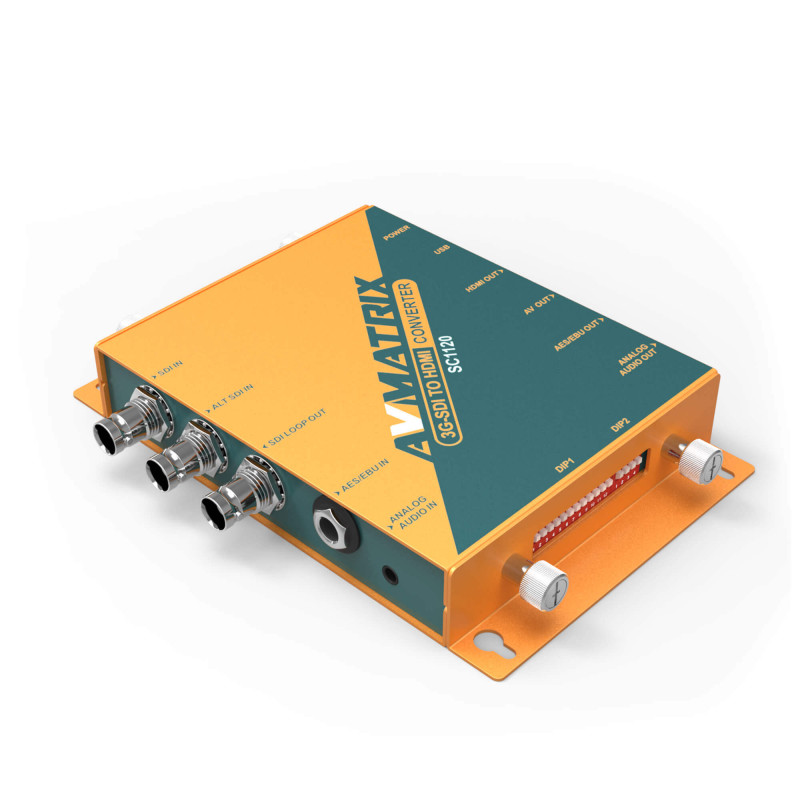

SC1120

SC1120 is an exquisite and professional SDI converter to convert SDI signal to HDMI and AV signals at the same time. The format of the output can realize pass through or up/down scaling and frame rate conversion. De-interlacing function and seamless conversion can also be supported to avoid jitter. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC1120 is your ideal choice for broadcasting and AV post production applications

Out of Stock
€270.30
Tax included
Quantity

Add to Compare
Add to Wishlist

KEY FEATURES AVMATRIX VIDEO CONVERTER

  • 3G-SDI, Alt 3G-SDI, AES/EBU, and analog audio inputs

  • 3G-SDI loop, HDMI, AV, AES/EBU, and analog audio outputs

  • Supports resolutions up to 1080p 60 Hz

  • Up/down scaling and frame rate conversion

  • AES/EBU or analog audio embedding and de-embedding

  • Redundant SDI input and re-clocked output

  • Input signal automatic detection and configuration

  • LED indicators for power and signal lock

  • Easy control via DIP switches

  • Remote control for PC via USB

  • Software can be upgraded via PC

  • Threaded locking power connector

  • Detachable bracket design for wall mounting

SPECIFICATIONS AVMATRIX SC1120

Model SC1120
Inputs SDI Video Input:
1 x SD/HD/3G-SDI
1 x Alt 3G-SDIAES/EBU Digital Audio Input:
1 x 1/4″ (6.35 mm) TRS jackAnalog Audio Input:
1 x 1/8″ (3.5 mm) jack
Outputs HDMI Video Output:
1 x HDMI type-AAV Output:
1 x 1/8″ (3.5 mm) jackSDI Video Loop Output:
1 x SD/HD/3G-SDIAES/EBU Digital Audio Output:
1 x 1/4″ (6.35 mm) TRS jackAnalog Audio Output:
1 x 1/8″ (3.5 mm) jack
SDI Formats Supported 1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50, 525i 59.94
SDI Video Rates SD/HD/3G-SDI
SDI Compliance SMPTE 292M/SMPTE 259M/SMPTE 424M
SDI Color Space YUV 4:2:2
SDI Auto Switching Auto selects SD, HD, and 3G-SDI on input
HDMI Format Support 1080p 60/50/30/25/24
1080i 60/50
720p 60/50/30/25/24
576i 50, 480i 60
HDMI Color Space YUV 4:2:2., YUV 4:4:4, RGB 4:4:4
AV Output NTSC, PAL
Power Connector Threaded locking connector
Power Supply 12 VDC
Power Consumption 6 W
Operating Temperature -4 to 140°F (-20 to 60°C)
Storage Temperature -22 to 158°F (-30 to 70°C)
Relative Humidity 0 to 90% non-condensing
Dimensions 4.9 x 4.1 x 1.0″ (125.5 x 104 x 24.5 mm)



: SC1120
