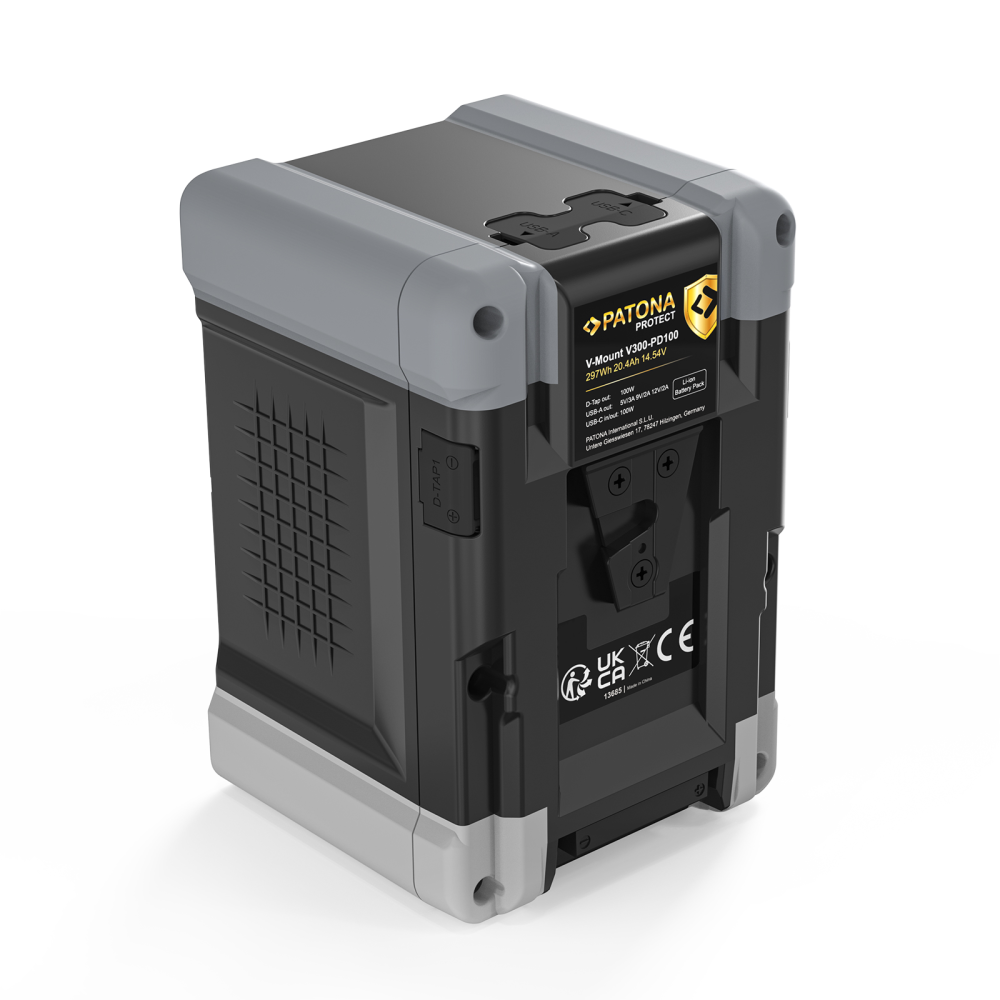

PATONA13685 PROTECT V-Mount V300

COMPLETE DESCRIPTION

The PATONA13685 PROTECT V-Mount V300 is a premium battery in Patona’s PROTECT line, offering 297 Wh (approx. 20,400 mAh) of power. Designed for professional videographers, broadcasters, and demanding creatives, it delivers reliable, long-lasting energy for cameras, monitors, LED lights, recorders, transmitters, and other gear compatible with V-Mount, D-Tap, or USB outputs.

Its fire-retardant V1 housing can withstand internal temperatures up to 90 °C without deforming, and reinforced corners absorb shocks and drops. The PROTECT series emphasizes both performance and safety, engineered for rugged field use.

The integrated USB-C PD100W input allows fast charging (2.5–3.5 hours), while multiple outputs make it highly versatile: you can power laptops, smartphones, USB equipment, and video gear concurrently. Some versions include an OLED display to show voltage, remaining capacity, and charging status in real time.

This battery is ideal for ENG crews, mobile studios, field production teams, freelance videographers, and any scenario where fixed power is unavailable. If you demand a robust, safe, and flexible V-Mount battery, the V300 is a top-tier choice.

KEY FEATURES

Fast charging & flexibility

• USB-C PD100W input (20 V / 5 A) enables full recharge in 2.5–3.5 hours.
• Support for BP and D-Tap inputs up to 16.8 V / 8 A as alternative charging options.
• Multiple outputs: USB-C, USB-A, 2× D-Tap, and BP main V-Mount output.
• Protection against overcharge, overcurrent, undervoltage, short circuit, and overtemperature.
• Fire-retardant V1 housing, temperature resistance up to 90 °C, and reinforced corner bumpers.
• Low self-discharge for long storage with minimal energy loss.
• OLED display (when available) for real-time status and capacity monitoring.

Advantages over competing models

• Superior durability with fire-safe housing and shock protection — ideal for outdoor and demanding environments.
• Faster recharge via PD100W compared to many standard V-Mount batteries.
• Simultaneous multi-output support for powering multiple devices.
• High energy density: about 297 Wh in a compact V-Mount format.
• Wide compatibility across V-Mount devices, monitors, LED lights, transmitters, and USB gear.

TECHNICAL SPECIFICATIONS

• Type: Li-ion V-Mount battery
• Nominal capacity: 20,400 mAh / 297 Wh
• Watt-hour range: 297–305 Wh
• Estimated capacity range: 20,400–21,000 mAh
• USB-C (PD) input: 20 V / 5 A — PD100W
• Max USB-C recharge time: 2.5–3.5 hours
• BP (V-Mount) input: 16.8 V / 8 A
• D-Tap input: 16.8 V / 8 A (optional)
• USB-C output: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A (PD100W)
• USB-A output: 5 V / 3 A, 9 V / 2 A, 12 V / 2 A (max 24 W)
• Main V-Mount output (BP): 14.4 V / 13 A (max)
• D-Tap output: 100 W (16.8 V)
• Max discharge current: 13 A
• Number of cells: 24 Li-ion cells (LG MJ1)
• Cell type: LG MJ1
• Operating temperature: –10 °C to +60 °C
• Dimensions: 139.3 × 92.7 × 94.8 mm
• Net weight: 1,555 g
• Safety electronics: Overcharge, overcurrent, undervoltage, thermal & short-circuit protection
• Housing: Fire-retardant V1 material, resistant to 90 °C, with shock-absorbing corner protection

PACKAGE CONTENTS

• 1 × PATONA13685 PROTECT V-Mount V300 battery (297 Wh)
• 1 × USB-C cable (PD compatible)
• 1 × USB-A cable
• User documentation / manual (multilingual)

FAQ – FREQUENTLY ASKED QUESTIONS

What is the capacity of the PATONA V300?

The battery has a nominal capacity of 20,400 mAh, equal to 297 Wh, with an operating range up to 305 Wh.

How long does it take to charge fully?

Using the USB-C PD100W input, full recharge takes approximately 2.5 to 3.5 hours.

How many outputs and what voltages are supported?

It supports USB-C (up to 20 V / 5 A), USB-A (5 V, 9 V, 12 V), main V-Mount output (14.4 V / 13 A), and a D-Tap output (100 W / 16.8 V).

Is it compatible with standard V-Mount gear?

Yes, it works with all devices accepting V-Mount batteries such as cameras, monitors, LED lights, and transmitters.

Is it safe to use on set?

Yes. The PROTECT line is engineered for top safety levels with fire-resistant housing, advanced protection circuits, and reinforced corners.

What are its operating conditions?

It operates reliably in a temperature range from –10 °C up to +60 °C.

Can it act as a power bank for laptops or phones?

Yes. With its USB-C PD100W output it can charge PD-compatible laptops, tablets, or smartphones.

Are there shipping restrictions?

Yes. Because it’s a battery exceeding 100 Wh, it falls under dangerous goods regulations (ADR, IATA, IMDG) requiring
