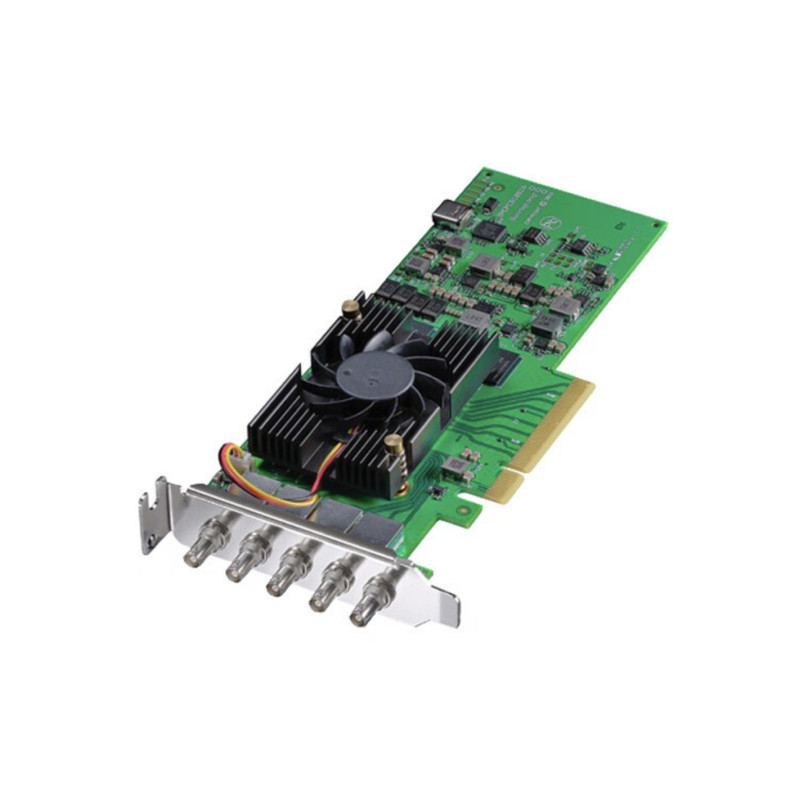

The DeckLink 8K Pro Mini is the ultimate low-profile capture and playback card for digital cinema. Equipped with four independent mini BNC 12G-SDI connections, it works with all SD, HD, Ultra HD, 4K DCI, 8K, and 8K DCI formats. Thanks to its compatibility with high frame rates, 12-bit RGB 4:4:4 video, and full Rec. 2020 color, it is perfect for next-generation high-resolution and high dynamic range workflows.

Key Features

• Compatibility: Supports all video standards up to 8K DCI.

• Connections: Four independent 12G-SDI mini BNC connections.

• Video: 12-bit RGB 4:4:4 video and Rec. 2020 color space.

• Applications: Ideal for DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, and many other video editing applications.

Technical Specifications

• Video SDI Inputs: 4 x 12G-SDI micro BNC bidirectional.

• Video SDI Outputs: 4 x 12G-SDI micro BNC bidirectional.

• Audio SDI Inputs: 16 channels embedded in SD/HD/2K, 64 channels embedded in 4K/8K.

• Audio SDI Outputs: 16 channels embedded in SD/HD/2K, 64 channels embedded in 4K/8K.

• Computer Interface: PCI Express with 8 lanes of third generation.

• Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4.

• Compatible Software: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video utilities and drivers for Mac OS and Windows.

Packaging Contents

• 1 DeckLink 8K Pro Mini card
