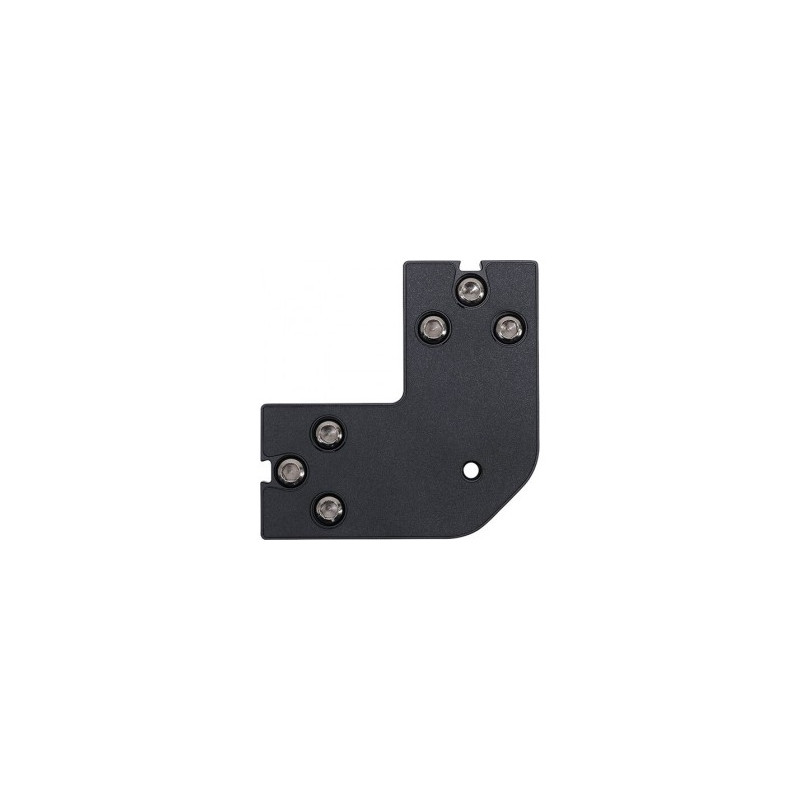

The INFINIBAR Square Flat Connector is an all-metal mounting accessory that is designed to be used with any INFINIBAR (PB3/PB6/PB12) to create square or other uniquely angled lighting shapes.
Each connector features DC barrel connectors that allow the INFINIBARs to share power when being charged.
Each connector also features a 1⁄4-20in screw thread for additional mounting with the included 1⁄4-20in eye-bolts or other accessories.

Main Features

• Connect Two INFINIBAR Lights onto a 90° flat Bracket

• Use Four INFINIBAR square Flat Connectors to build a Square Lighting Fixture

• Rounded Corner Design

• AC Power Passthrough for Both Connected Lights

• Secure each INFINIBAR safely with Three Captive 5mm Hex Screws

• All metal construction

Specifications

Weight: 144g / 0.32lbs

Packing Dimensions: 18.4 x 16.6 x 11.1cm / 7.2 x 6.5 x 4.4in

Net Weight: 652g / 1.44lbs

Gross Weight: 787g / 1.74lbs

Carton Quantity: 12 pcs

Carton Dimensions: 35.2 x 36.7 x 38.5cm / 13.9 x 14.5 x 15.2in

Carton Weight: 10.74kg / 23.68lbs

WHAT’S IN THE BOX

4  INFINIBAR Square Flat Connector

4 1⁄4-20in Eye Bolt

1 5mm Hex Wrench
