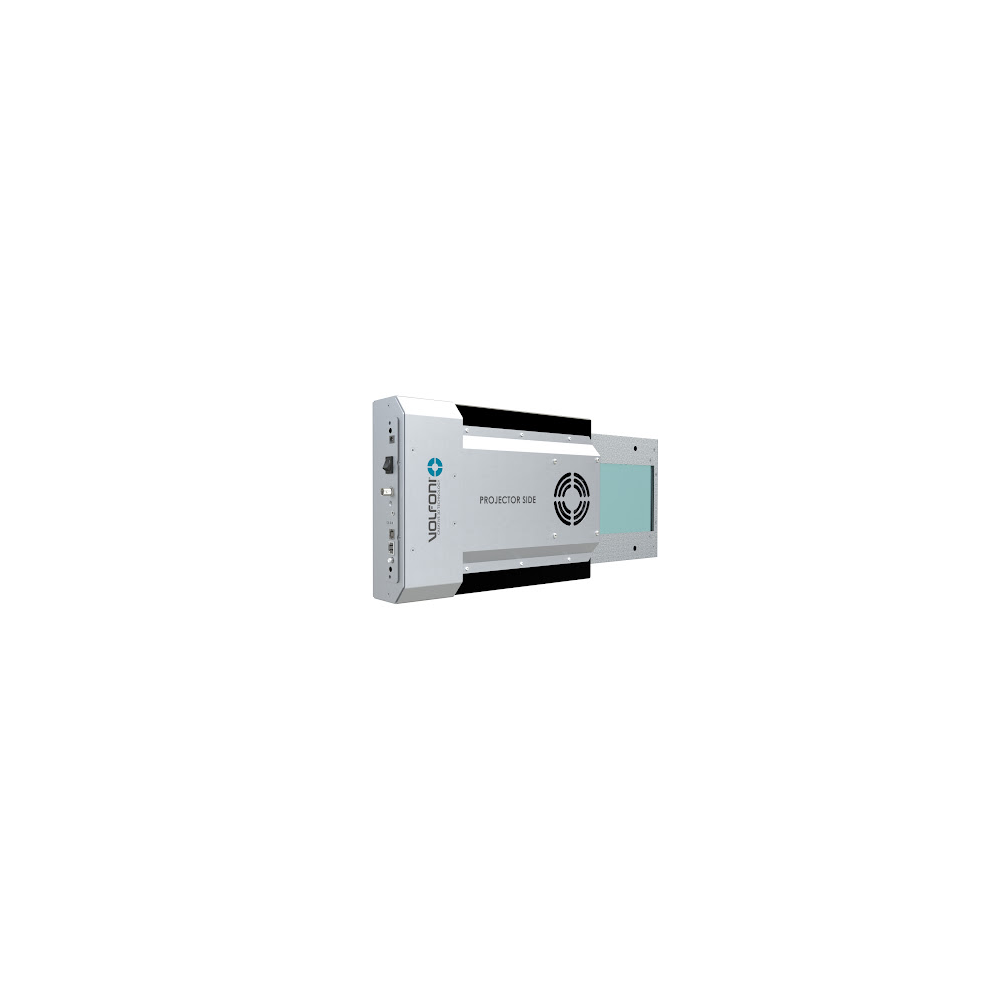

Volfoni SmartCrystal Cinema Neo 3D

FULL DESCRIPTION

The Volfoni SmartCrystal Cinema Neo is an advanced passive polarization modulator for 3D systems. It mounts directly in front of DLP cinema projectors up to 7 kW to generate stereoscopic images viewable with passive circular-polarized 3D glasses. Perfect for cinemas, home theaters, and professional environments, it delivers immersive, crisp, and comfortable visuals. Target users include audiovisual professionals, installers, and cinema enthusiasts. Featuring a robust aluminum design, Pi-Cell technology, simplified maintenance, and a 3-year warranty, it supports high-frequency frame rates up to 240 Hz for smooth HFR output.

KEY FEATURES

• Quick, compact installation with optimized projection booth brackets.
• Supports HFR (High Frame Rate) up to 240 Hz for fluid, realistic images.
• Passive system eliminates need for expensive active glasses and batteries.
• High light efficiency (> 18 %), outperforming legacy systems (~10–12 %). :contentReference[oaicite:24]{index=24}
• Compatible with most DLP DCI-compliant cinema projectors.
• Works with standard passive circular-polarized 3D glasses, with Volfoni recommended.
• 3-year warranty, easy upkeep, durable aluminum construction.

TECHNICAL SPECIFICATIONS

• Max projector power: 7 kW :contentReference[oaicite:25]{index=25}
• Max switching rate: 244 Hz (up to 240 Hz) :contentReference[oaicite:26]{index=26}
• Optical efficiency: > 18 % :contentReference[oaicite:27]{index=27}
• Power supply: 100–240 V AC, 50/60 Hz; consumption 18 W, 0.7 A :contentReference[oaicite:28]{index=28}
• Operating temperature: +10 °C to +40 °C; storage: −5 °C to +50 °C :contentReference[oaicite:29]{index=29}
• Polarization window size: 171 × 116 mm :contentReference[oaicite:30]{index=30}
• Product size: 380 × 254 × 77 mm; weight: 6 kg :contentReference[oaicite:31]{index=31}
• Built-in surge protection; includes UK/EU/US power adapters :contentReference[oaicite:32]{index=32}

WHAT’S IN THE BOX

• SmartCrystal Cinema Neo module
• Power adapters (UK, EU, US) :contentReference[oaicite:33]{index=33}
• Sync cables: BNC/BNC (2 m), BNC/GPIO 15 (2 m), BNC/GPIO 37 (2 m) :contentReference[oaicite:34]{index=34}
• Mounting bracket with screws and anchors included :contentReference[oaicite:35]{index=35}
• User manual

FAQ

1. What 3D glasses are needed?

Any passive circular-polarized 3D glasses work, but Volfoni’s models offer the best performance. :contentReference[oaicite:36]{index=36}

2. Is a special screen required?

Yes – a polarization-preserving silver screen is necessary to avoid cross-talk and blur. :contentReference[oaicite:37]{index=37}

3. Is it compatible with non-DLP projectors?

LCD/LCoS projectors like JVC D-ILA or Sony SXRD may not be compatible; consult Volfoni. :contentReference[oaicite:38]{index=38}

4. Can the software be updated?

Yes – via USB using the “Volfoni Loader” from their support site. :contentReference[oaicite:39]{index=39}
